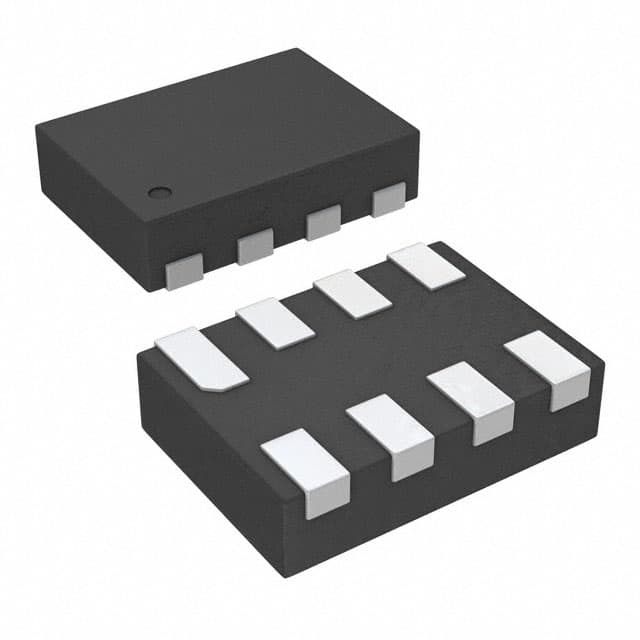

The TXS0102DQER from Texas Instruments is a 2-bit bidirectional voltage-level translator. This device is suitable for applications requiring translation between different voltage levels, supporting both open-drain and push-pull output types. It features auto-direction sensing, eliminating the need for a direction-control signal.
The translator operates with an input voltage range of 1.65V to 3.6V on one port and 2.3V to 5.5V on the other, with VCCA less than or equal to VCCB. It offers a maximum data rate of 24Mbps for push-pull signals and 2Mbps for open-drain signals. The device includes features like edge rate acceleration and output enable functionality.
Packaged in an 8-X2SON (1.4x1) surface-mount configuration, the TXS0102DQER is designed for compact electronic systems. It operates within an ambient temperature range of -40°C to 85°C. The VCC isolation feature ensures both ports are in a high-impedance state if either VCC input is at ground, and no power-supply sequencing is required.
Key electrical characteristics include a propagation delay of 4.4ns and a maximum supply current of 0.025mA. ESD protection is robust, with HBM ratings of 2500V for the A port and 8kV for the B port. Latch-up performance exceeds 100mA per JESD 78, Class II.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.12 | $0.12 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The supply voltage range is 1.65V to 3.6V.
The maximum data rate is 24Mbps.
The operating temperature range is -40°C to 85°C.
It comes in an 8-XFDFN package (8-X2SON 1.4x1mm).
Yes, it features auto-direction sensing for bidirectional operation.
The propagation delay is 4.4ns.
A port: 2500V HBM, 250V MM, 1500V CDM; B port: 8kV HBM, 250V MM, 1500V CDM.
