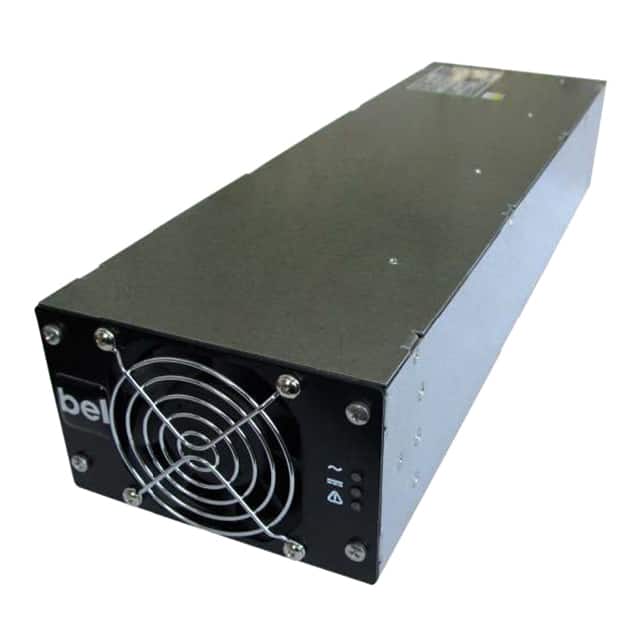

The Bel Power Solutions TXP4000-1110G is a high-power AC/DC converter designed for industrial applications. It converts a universal 3-phase AC input voltage range of 180-528 VAC to a configurable 110VDC output, delivering up to 4000W of power.
Key electrical specifications include a typical efficiency of 93%, a power factor greater than 0.94, and an adjustable output voltage range. The unit supports parallel operation of up to 8 units for a combined output of 28/32 kW, and serial operation of up to 4 units. Communication interfaces such as RS485 and CAN bus are available for system control and monitoring.
This power supply unit (PSU) is housed in a 2U rack-mountable package, making it suitable for workstations, storage systems, and industrial racks. It operates within an ambient temperature range of -25°C to 55°C and features internal fan cooling.
The TXP4000-1110G is designed for industrial, process, and control machinery applications, offering robust performance and flexibility.
The TXP4000-1110G has an adjustable output voltage range of 30 VDC to 137.5 VDC, with a nominal output voltage of 110 VDC.
The maximum output power for the TXP4000-1110G is 4000 W.
The input voltage range for the TXP4000-1110G is 350-528 Vrms, with a permitted variation of 180-528 Vrms.
The typical efficiency of the TXP4000-1110G is 93%.
Yes, up to 8 units can be operated in parallel, providing a combined output of 28/32 kW.
The TXP4000-1110G features RS485 and CAN bus communication interfaces.
The operating temperature range is -25°C to 55°C.
