| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

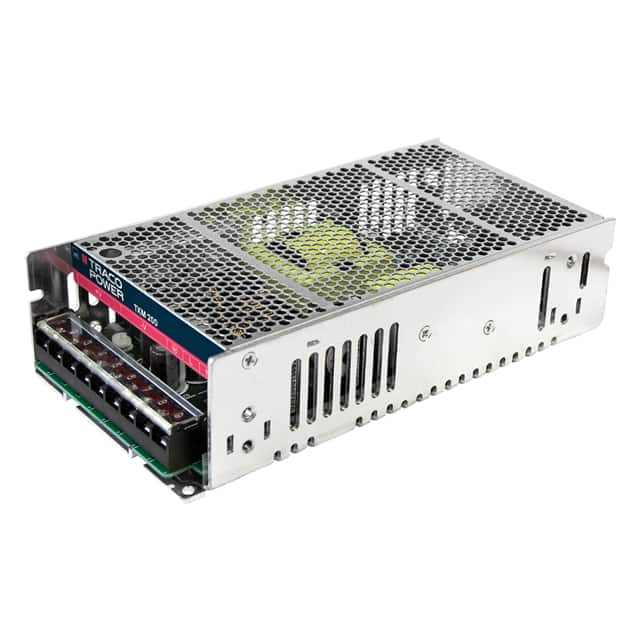

The Traco Power TXM 200-148 is an enclosed AC/DC power supply designed for ITE (Commercial) applications. It delivers 202W of power with an output current of 4.2A and features adjustable output, power factor correction (PFC), and universal input capabilities.
This converter offers a high isolation voltage of 3kV and operates efficiently at 88.5%. Its dimensions are 199.0mm in length, 99.0mm in width, and 50.3mm in height, with a chassis mount type. The operating temperature range is -20°C to 65°C with derating.
Key features include adjustable output, PFC, and universal input, making it suitable for various commercial applications. The unit is approved by CB, CE, and cURus agencies, ensuring compliance with international standards.
-20°C to 65°C with derating.
88.5%.
3 kV.
1 output.
4.2 A.
202 W.
Adjustable output, PFC, universal input.
