| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Storage Temperature | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Width |

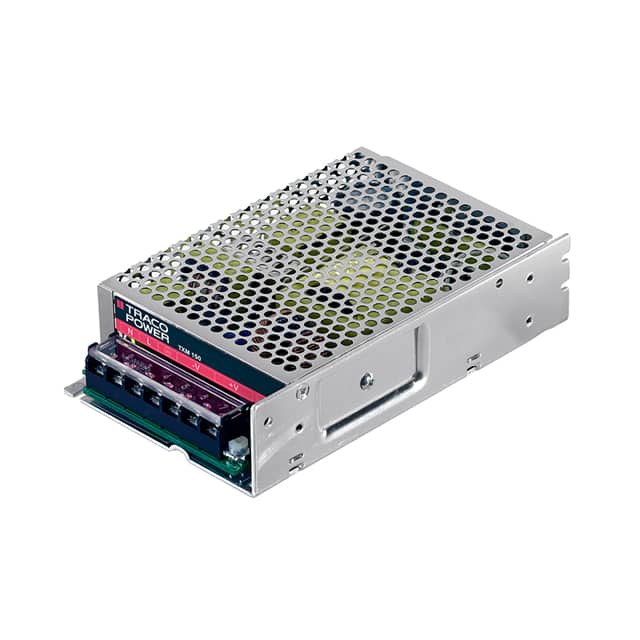

The Traco Power TXM 150-124 is a 151 Watt enclosed AC/DC power supply designed for cost-critical applications. It features a compact metal case and screw terminal block connections for easy installation.
This model provides a single 24VDC output with a maximum current of 6.3A. Key electrical specifications include a universal AC input range of 90-264 VAC, an efficiency of 87% typical, and active power factor correction greater than 0.95. It offers adjustable output voltage within a ±10% range and includes protections such as over-voltage, over-temperature, and continuous short circuit protection.
The operating temperature range is -20°C to 60°C with derating, and storage temperature ranges from -30°C to +85°C. The unit has dimensions of 160.0mm x 98.3mm x 29.0mm and is designed for chassis mounting.
Compliance includes CE and cURus approvals. The TXM 150 series is suitable for ITE (Commercial) applications.
The TXM 150-124 has a nominal output voltage of 24 VDC, which is adjustable within a ±10% range.
The maximum output current for the TXM 150-124 is 6.3 A.
The maximum output power of the TXM 150-124 is 151W.
The typical efficiency of the TXM 150-124 is 87%.
The operating temperature range is -20°C to 60°C with derating.
The dimensions are 160.0mm in length, 98.3mm in width, and 29.0mm in height.
The TXM 150-124 has CE and cURus approvals.
