| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Storage Temperature | |
| Temperature Coefficient | |
| Type | |
| Voltage |

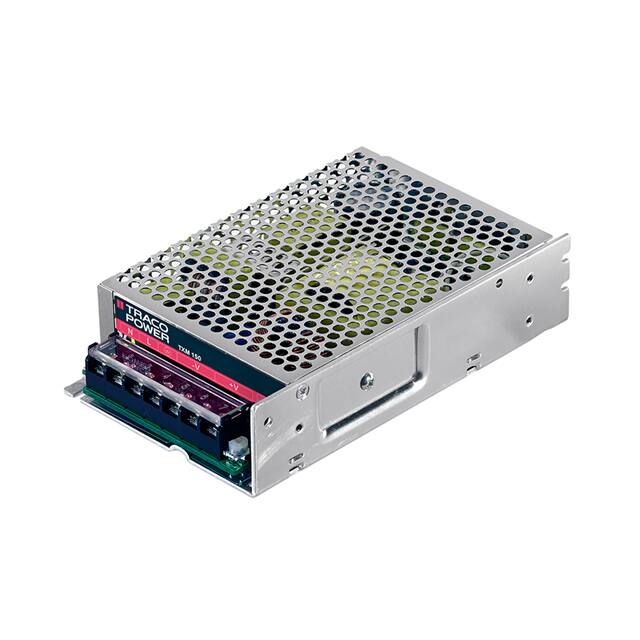

The TXM 150-115 is part of Traco Power's TXM 150 series, offering 150 Watt enclosed AC/DC power supplies designed for cost-critical applications. This model provides a 15VDC output voltage at a maximum current of 10A, with an efficiency of 87% typical.
Key features include a universal AC input range of 90-264 VAC and active power factor correction. The power supply is designed for chassis mounting and has a compact metal case. It operates within a wide temperature range of -20°C to +70°C, with derating applied above 40°C.
Protection features include output current limitation, short circuit protection in hiccup mode, over voltage protection, and over temperature protection. The unit complies with European EMC standards and the Low Voltage Directive (LVD), with CE and cURus approvals.
This power supply is suitable for ITE (Commercial) applications and offers adjustable output voltage and screw terminal block connections for easy installation.
The TXM 150-115 has an output voltage of 15 VDC.
The maximum output current for the TXM 150-115 is 10 A.
The typical efficiency of the TXM 150-115 is 87%.
The operating temperature range is -20°C to +70°C, with derating applied above 40°C.
The TXM 150-115 uses chassis mount.
Yes, the TXM 150-115 features adjustable output voltage.
