| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Power | |
| Power (Watts) | |
| Storage Temperature | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Width |

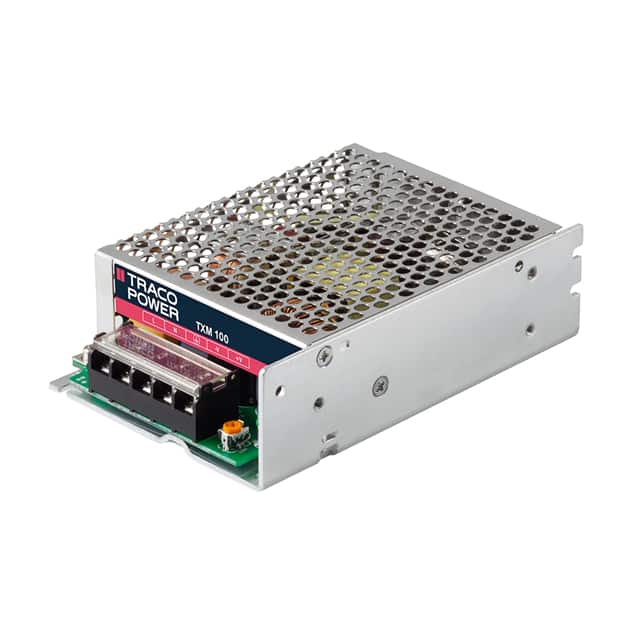

The Traco Power TXM 100 Series, specifically the TXM 100-112 model, is a 100 Watt enclosed AC/DC power supply designed for cost-critical applications. It features a compact metal case and screw terminal block connections for easy installation.
Key electrical specifications include a universal input voltage range of 90-264 VAC, a typical efficiency of 87%, and an output voltage of 12VDC adjustable within a range of 10.0-15.0 VDC. The maximum output current is 8.5A. It includes features such as active power factor correction (>0.93), adjustable output voltage, and continuous short circuit protection.
Designed for reliability, the unit operates within a temperature range of -20°C to +60°C with derating. It has a chassis mount type and complies with European EMC standards and the Low Voltage Directive (LVD), carrying CE and cURus approvals.
This power supply is suitable for ITE (Commercial) applications and offers a 3-year product warranty.
The TXM 100-112 has a nominal output voltage of 12 VDC, which is adjustable within the range of 10.0 to 15.0 VDC.
The maximum output current for the TXM 100-112 is 8.5 A.
The typical efficiency of the TXM 100-112 is 87%.
The operating temperature range for the TXM 100-112 is -20°C to +60°C, with derating applied above 50°C.
The dimensions of the TXM 100-112 are 129.0mm in length, 98.3mm in width, and 29.0mm in height.
Yes, the TXM 100-112 features continuous short circuit protection with automatic recovery in hiccup mode.
