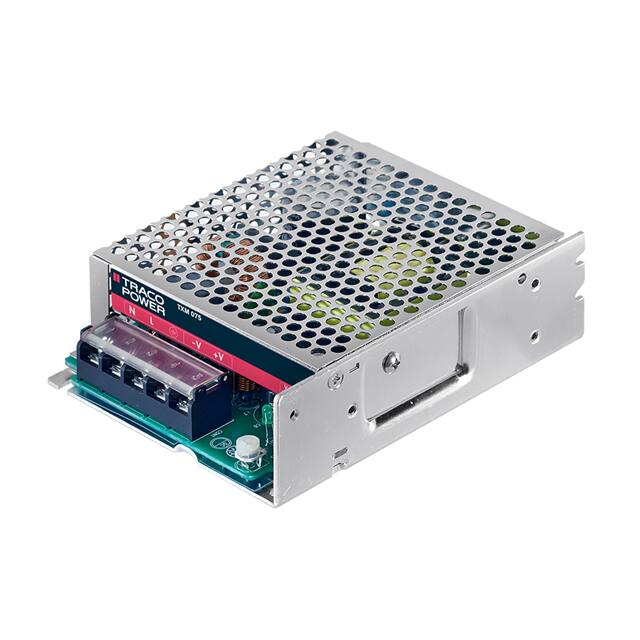

The Traco Power TXM 075-148 is part of the TXM 075 series of 75 Watt enclosed AC/DC power supplies designed for cost-critical applications. This specific model provides a 48VDC output voltage with a maximum current of 1.6A, delivering up to 77W of power.
Key electrical specifications include a universal AC input range of 90-264 VAC, a typical efficiency of 89%, and adjustable output voltage with a range of -5% to +10%. It features protections such as output current limitation and over-voltage protection, along with continuous short circuit protection.
Designed for easy installation, this power supply has a compact metal case and screw terminal block connections. It operates within a wide temperature range of -25°C to +70°C with derating above 50°C. The unit is suitable for ITE (Commercial) applications and carries CE and cURus approvals.
Mounting is chassis mount. The dimensions are 129.0mm x 99.1mm x 38.1mm.
The nominal output voltage is 48 VDC.
The maximum output current is 1.6 A.
The maximum output power is 77W.
The typical efficiency is 89%.
The operating temperature range is -25°C to +70°C, with derating required above 50°C.
It accepts a universal AC input range of 90-264 VAC and a DC range of 127-370 VDC.
It uses chassis mount.
