| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Storage Temperature | |
| Tape & Reel | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Width |

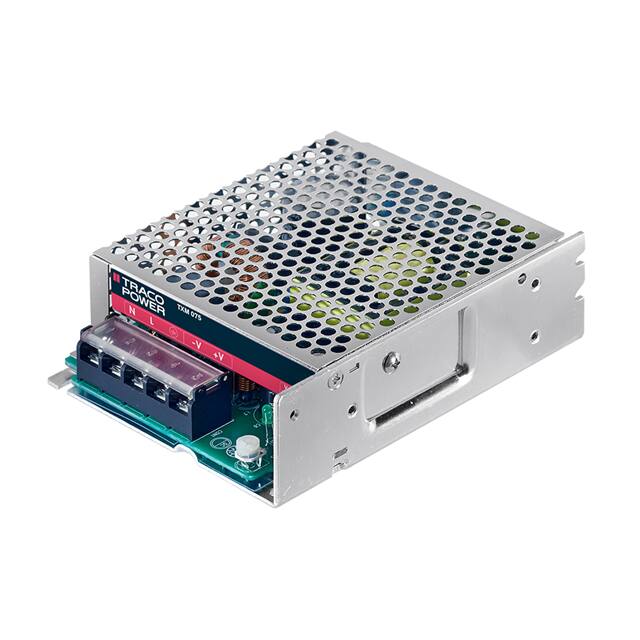

The TXM 075-115 is part of Traco Power's TXM 075 series of 75 Watt enclosed AC/DC power supplies, designed for cost-critical applications. This model provides a 15VDC output at up to 5A, delivering a maximum power of 75W.
Key electrical specifications include a universal AC input range of 90-264 VAC, an efficiency of 86% typical, and adjustable output voltage with a range of -5% to +10%. It offers robust protection features such as output current limitation and short circuit protection with automatic recovery.
Designed for easy installation, it features a compact metal case and screw terminal block connections, suitable for chassis mounting. The operating temperature range is -25°C to 70°C with derating above 50°C. This power supply complies with European EMC standards and the Low Voltage Directive (LVD).
Applications include ITE (Commercial) equipment. The unit is approved by CE and cURus.
The input voltage range is 90-264 VAC (47-63 Hz) or 127-370 VDC.
The operating temperature range is -25°C to 70°C with derating above 50°C.
The package type is enclosed chassis mount.
The output voltage is 15 VDC.
The output current is 5 A maximum.
The typical efficiency is 86%.
The dimensions are 129.0 mm x 99.1 mm x 38.1 mm.
