| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Storage Temperature | |
| Tape & Reel | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Width |

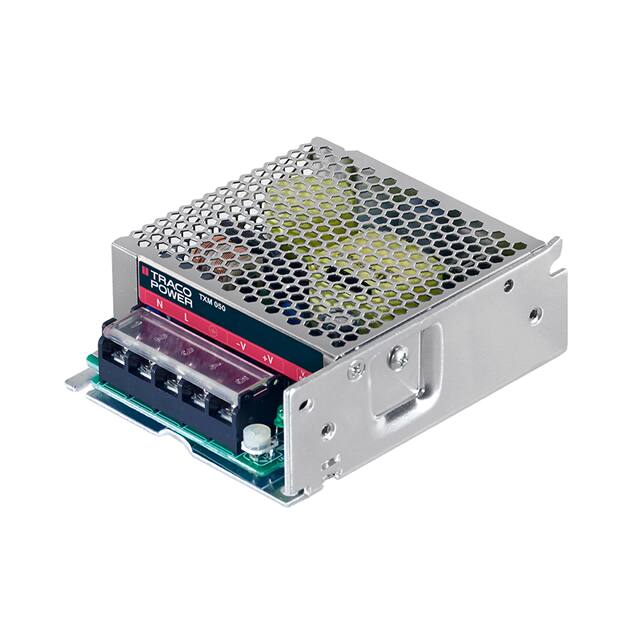

The Traco Power TXM 050-124 is a 50 Watt enclosed AC/DC power supply designed for cost-critical applications. This model provides a 24 VDC output voltage with a maximum current of 2.2 A, delivering up to 53W of power.
Key electrical specifications include a universal AC input range of 88-264 VAC, a typical efficiency of 88%, and an adjustable output voltage range of -5% to +10%. It offers a hold-up time of 50 ms at 230 VAC and a start-up time of 1.5 s.
Designed for easy installation, it features a compact metal case and screw terminal block connections. The unit is chassis mountable and operates within a temperature range of -25°C to +70°C with derating. It complies with European EMC standards and the Low Voltage Directive (LVD).
This power supply is suitable for ITE (Commercial) applications and has approval agency certifications including CE and cURus.
The TXM 050-124 has a 24 VDC output voltage.
The maximum output current for the TXM 050-124 is 2.2 A.
The TXM 050-124 has a power rating of 53W.
The typical efficiency of the TXM 050-124 is 88%.
The operating temperature range is -25°C to +70°C with derating.
It supports universal AC input ranging from 88 to 264 VAC.
The TXM 050-124 is a chassis mount type.
