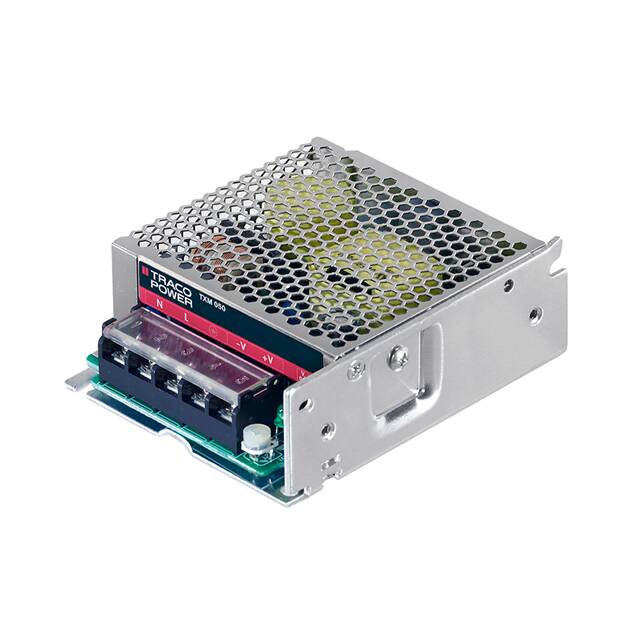

The Traco Power TXM 050-112 is a 50 Watt enclosed AC/DC power supply designed for cost-critical applications. It provides a 12VDC output with a maximum current of 4.2A and an efficiency of 85% typical.
This power supply features a compact metal case with screw terminal block connections, making it easy to install. It offers universal AC input (88-264 VAC) and DC input (127-370 VDC). Key electrical specifications include adjustable output voltage, input voltage regulation of 0.5% max, and load regulation of 1.0% max. It also includes over-voltage protection and short circuit protection.
The operating temperature range is -25°C to +70°C with derating. The unit is designed for chassis mounting and has dimensions of 99.1mm x 82.0mm x 35.1mm.
Compliance includes CE and cURus approvals. The series is designed to comply with European EMC standards and the Low Voltage Directive (LVD).
The output voltage is 12 VDC.
The maximum output current is 4.2 A.
The output power is 50W.
The typical efficiency is 85 %.
The operating temperature range is -25°C to +70°C (With Derating).
It is a chassis mount type.
