| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Type | |
| Voltage | |
| Width |

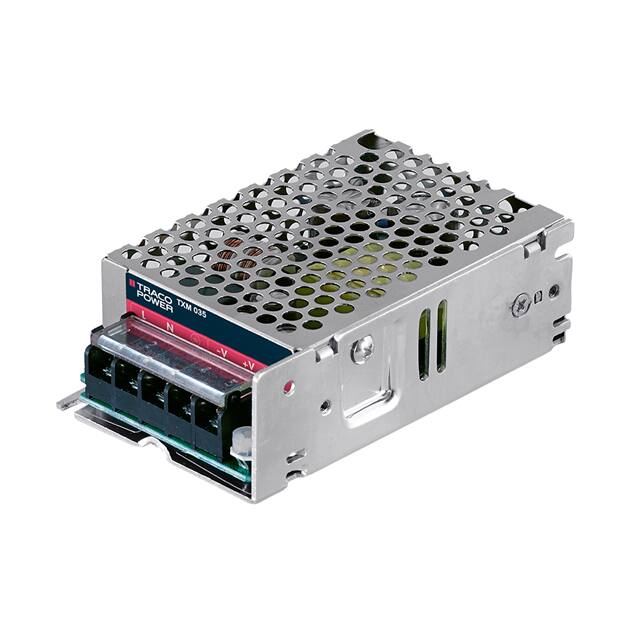

This Traco Power TXM 035-105 is an enclosed AC/DC converter delivering 30W of power with a 5V output. It features adjustable output and universal input capabilities, making it versatile for various applications.
The converter is designed for chassis mounting and has dimensions of 101.6mm x 63.5mm x 33.0mm. It operates within a temperature range of -25°C to 70°C with derating and offers an efficiency of 80%.
Key specifications include an isolation voltage of 3 kV and a current rating of 6A. The unit is approved by CE and cURus, suitable for ITE (Commercial) applications. It provides a single output and complies with RoHS3 standards.
5V DC.
6 A.
30W.
80%.
3 kV.
Enclosed chassis mount package; 101.6mm x 63.5mm x 33.0mm.
-25°C to 70°C with derating.
