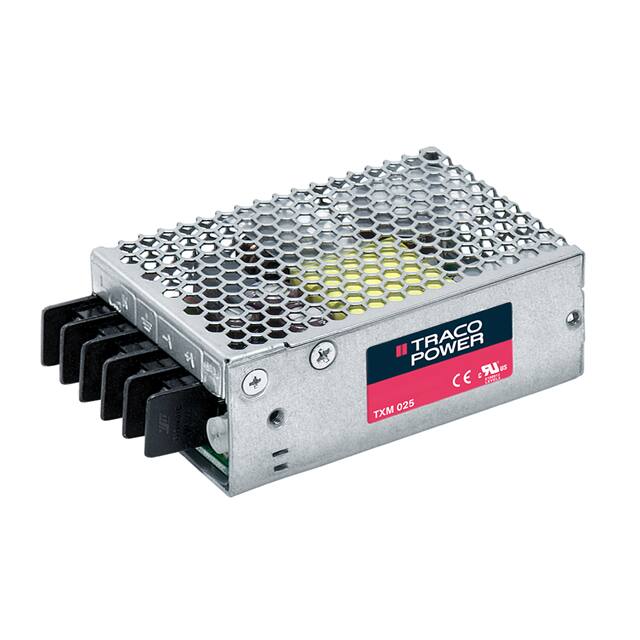

The Traco Power TXM 025-124 is a 25 Watt enclosed AC/DC power supply designed for cost-critical applications. This model provides a 24 VDC output with a maximum current of 1.1 A, delivering up to 26W of power.
Key electrical specifications include a typical efficiency of 84%, universal AC input range of 90-264 VAC, and adjustable output voltage with ±5% adjustment range. It offers robust protection features such as output current limitation and continuous short circuit protection with automatic recovery.
The power supply operates within a temperature range of -25°C to +70°C with derating. Its compact, metal-cased design with screw terminal block connections facilitates easy installation in various equipment. The unit is suitable for ITE (Commercial) applications and carries CE, cURus approvals.
Mounting is via chassis mount. The enclosed type offers protection and integration ease. It also features adjustable output and universal input capabilities, making it a versatile solution for power conversion needs.
The TXM 025-124 has a nominal output voltage of 24 VDC.
The maximum output power for the TXM 025-124 is 26W.
The operating temperature range for the TXM 025-124 is -25°C to +70°C (With Derating).
The TXM 025-124 uses chassis mount.
Yes, the TXM 025-124 features continuous short circuit protection with automatic recovery in hiccup mode.
