| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Storage Temperature | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Width |

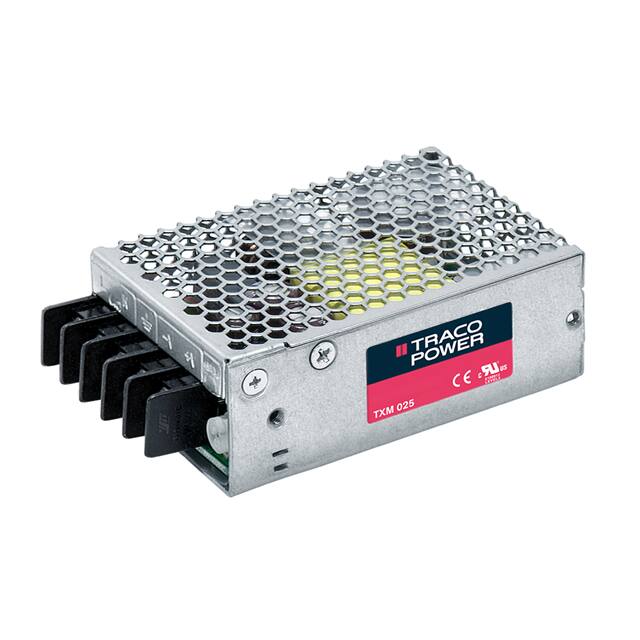

The TXM 025 series from Traco Power offers a family of 25 Watt enclosed AC/DC power supplies designed for cost-critical applications. The TXM 025-103 model provides a single output of 3.3 VDC with a maximum current of 6.0 A, delivering up to 25W of power.
These power supplies feature a compact metal case and screw terminal block connections, making them easy to install. They offer universal AC input (90-264 VAC) and a DC input range of 127-370 VDC. Key electrical specifications include a typical efficiency of 71%, voltage set accuracy of ±2%, and adjustable output voltage within ±5%.
The TXM 025 series operates within a wide temperature range of -25°C to +70°C with derating. They are designed with features such as adjustable output voltage, universal input, and low no-load power consumption (<0.5W). The units comply with European EMC standards and the Low Voltage Directive (LVD).
With a chassis mount type, these power supplies are suitable for various industrial and commercial equipment applications. They are protected by continuous short circuit protection and over-voltage protection.
The TXM 025-103 has an output voltage of 3.3 VDC.
The maximum output current for the TXM 025-103 is 6.0 A.
The TXM 025-103 has a maximum output power of 25 W.
The typical efficiency of the TXM 025-103 is 71 %.
The operating temperature range for the TXM 025-103 is -25°C to +70°C (with derating).
The TXM 025-103 is a chassis mount type.
