| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Power Consumption | |
| Standard Number | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Width |

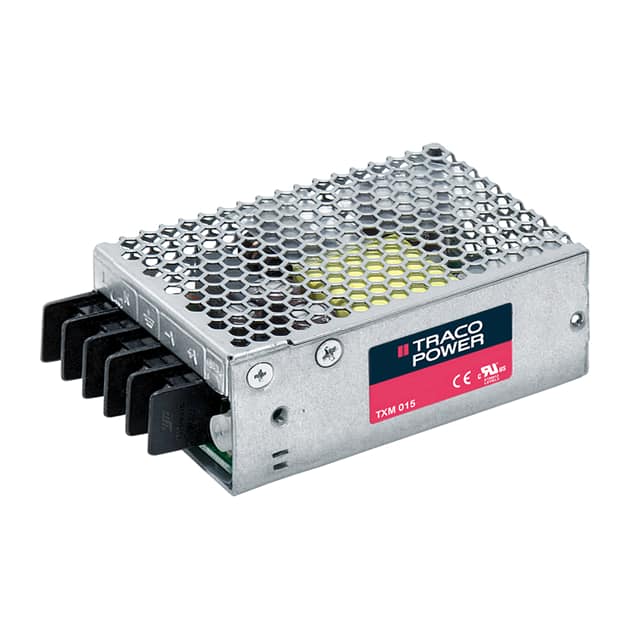

The Traco Power TXM 015-124 is part of the TXM 015 series of 15 Watt enclosed AC/DC power supplies designed for cost-critical applications. This specific model provides a 24 VDC output with a maximum power of 17W and an output current of 700 mA.
Key electrical specifications include a universal AC input range of 85-264 VAC, an efficiency of 85% typical, and adjustable output voltage from -5% to +10%. It offers robust protection features such as short circuit protection with automatic recovery and overvoltage protection.
The unit operates within a temperature range of -25°C to 70°C with derating. Its compact, metal-cased design with screw terminal block connections makes it suitable for easy installation in various equipment. The power supply complies with safety standards like EN 60950-1 and EN 62368-1, and is designed for ITE (Commercial) applications.
This enclosed converter is chassis mounted and built for reliability, featuring a 3-year product warranty.
The TXM 015-124 provides a nominal 24 VDC output at a maximum current of 700 mA.
The AC input voltage range is 85 to 264 VAC. It also accepts a DC input of 120 to 375 VDC.
The operating temperature range is -25°C to 70°C with derating.
It complies with EN 60950-1, EN 62368-1, IEC 60950-1, IEC 62368-1, UL 60950-1, and UL 62368-1 for IT and multimedia equipment.
The typical efficiency is 85%.
Yes, it features continuous short circuit protection with automatic recovery.
