| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Power | |
| Output Voltage | |
| Power (Watts) | |
| Power Consumption | |
| Standard Number | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Width |

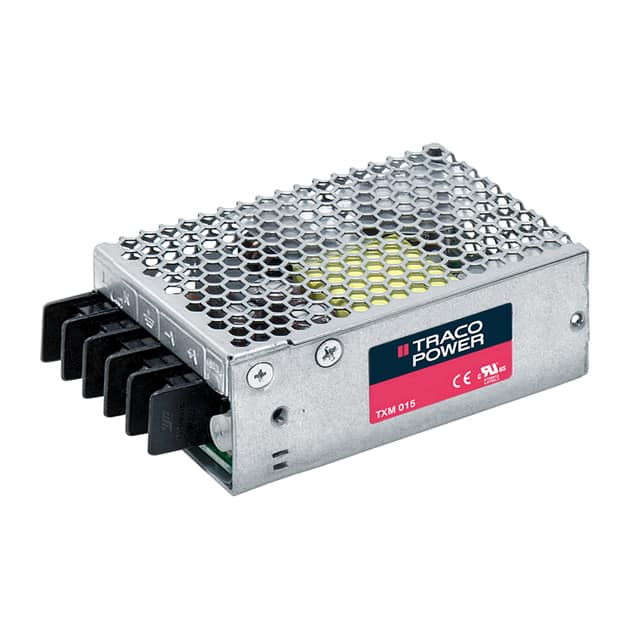

The Traco Power TXM 015-115 is part of the TXM 015 series of 15 Watt enclosed AC/DC power supplies designed for cost-critical applications. This model features a compact metal case with screw terminal block connections, making it easy to install.
Key electrical specifications include a 15VDC output voltage with a maximum current of 1A, delivering a total output power of 15W. It boasts a typical efficiency of 83% and a low no-load power consumption. The unit accepts a wide universal AC input range of 85-264 VAC and also supports a DC input range of 120-375 VDC.
Designed for reliability, the TXM 015-115 operates within an ambient temperature range of -25°C to 70°C with derating. It includes essential protections such as short circuit, overvoltage, and output current limitation. The power supply is certified by CE and cURus, complying with safety standards EN 60950-1 and EN 62368-1.
With its enclosed design and chassis mount type, this AC/DC converter is suitable for various ITE (Commercial) applications. Its dimensions are 79.0mm x 51.0mm x 28.8mm.
The AC input range is 85-264 VAC (47-63 Hz). The DC input range is 120-375 VDC (designed for, no certification).
The output voltage is 15 VDC (adjustable -5% to +10%) and the maximum output current is 1 A, providing 15 W of power.
The operating temperature range is -25°C to 70°C with derating.
The TXM 015-115 is an enclosed converter with chassis mount packaging.
It complies with EN 60950-1, EN 62368-1, IEC 60950-1, IEC 62368-1, UL 60950-1, and UL 62368-1 for IT and multimedia equipment.
The converter includes short circuit protection (continuous, automatic recovery), output current limitation (105-150% of Iout max), and overvoltage protection (105-150% of Vout nom).
The input-to-output isolation voltage is 3 kV.
