| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Power | |
| Output Voltage | |
| Power (Watts) | |
| Power Consumption | |
| SVHC Present | |
| Standard Number | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Width |

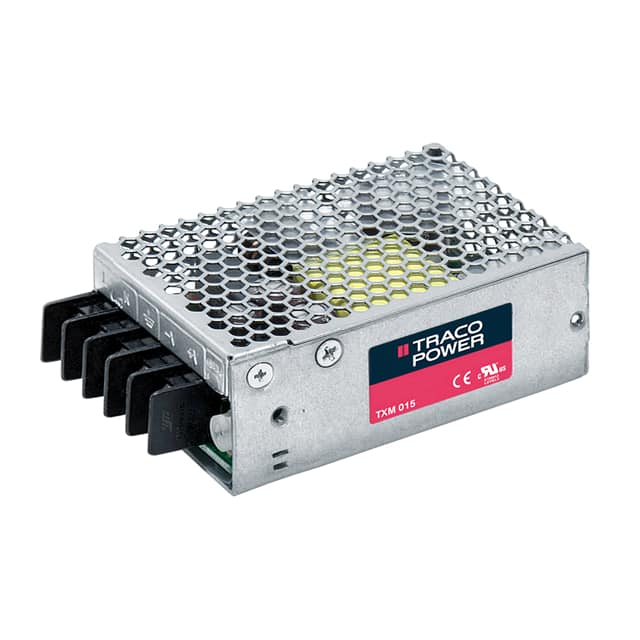

The TRACO Power TXM 015 series offers compact, enclosed AC/DC power supplies designed for cost-critical applications. The TXM 015-103 model provides a 3.3VDC output at up to 4A, delivering 13.2W of power.
Key features include a universal AC input range of 85-264 VAC and a DC input range of 120-375 VDC. The power supply operates efficiently with a typical efficiency of 70% and has low no-load power consumption (<0.5W). It supports an adjustable output voltage range of 3.1-3.5 VDC with ±3% set accuracy and ±1% line regulation.
Designed for easy installation, this unit features a screw terminal block and chassis mount. It operates within a wide temperature range of -25°C to 70°C (with derating) and includes protections such as short circuit and overvoltage protection. The power supply complies with safety standards IEC 62368-1 and UL 62368-1.
This series is suitable for ITE (Commercial) applications and is built with a robust metal case. It withstands 300 VAC surge input for 5 seconds and offers a 3-year product warranty.
The nominal output voltage is 3.3 VDC, adjustable from 3.1 VDC to 3.5 VDC.
The maximum output current is 4 A.
The input voltage range is 85 - 264 VAC.
The operating temperature range is -25°C to 70°C, with derating.
The dimensions are 79.0mm (L) x 51.0mm (W) x 28.8mm (H).
Yes, it has continuous, automatic recovery short circuit protection.
It complies with IEC 60950-1, IEC 62368-1, and UL 60950-1, UL 62368-1.
