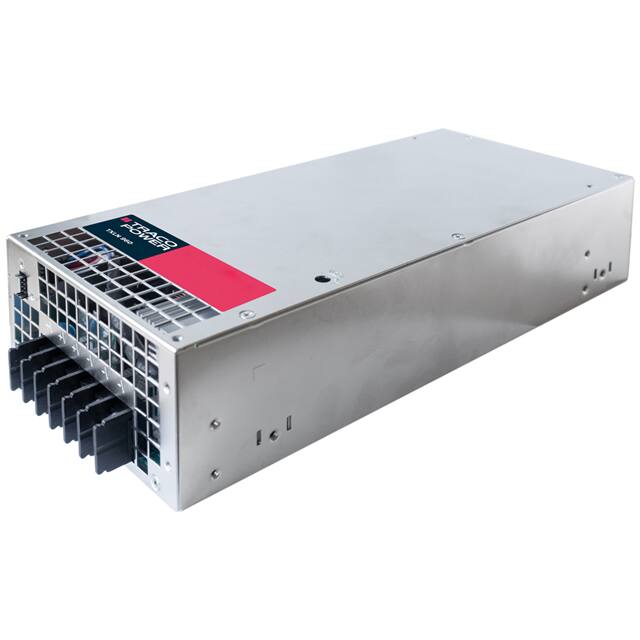

The Traco Power TXLN 960-115 is an enclosed AC/DC converter designed for ITE (Commercial) applications. It provides a robust 960W of power with a maximum output current of 64A.
Key electrical specifications include an efficiency of 88% and a voltage isolation rating of 3 kV. The converter operates within a temperature range of -20°C to 70°C with derating. It supports universal input and features like adjustable output, PFC, remote On/Off, remote Sense, and a standby output.
Mechanically, this unit is designed for chassis mounting and has dimensions of 275.0mm in length, 125.0mm in width, and 63.0mm in height. It complies with standard 62368-1 and carries approvals from CB, CE, and cURus.
Environmental compliance includes RoHS3 compliance and an MSL of 1. The REACH status is unaffected.
-20°C to 70°C with derating.
Chassis mount and enclosed design.
960W output with 88% efficiency.
64 A.
3 kV.
CB, CE, cURus.
275 mm x 125 mm x 63 mm.
