| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Industrial Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage |

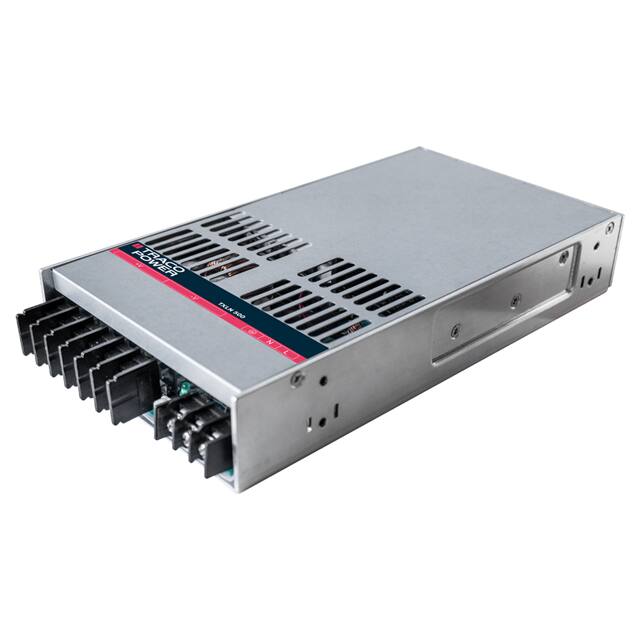

The Traco Power TXLN 500-112 is an enclosed AC/DC converter designed for commercial ITE applications. It delivers a single output of 12V at 41.7A, providing 500W of power with 88% typical efficiency. The converter features chassis mount packaging with dimensions of 230.0mm x 127.0mm x 40.6mm (9.06" x 5.00" x 1.60").
Key features include adjustable output, power factor correction (PFC), remote on/off, remote sense, standby output, and universal input. The operating temperature range is -30°C to 70°C with derating. The converter is approved to CB, CE, and cURus standards, and complies with safety standard 62368-1.
-30°C to 70°C with derating.
Chassis Mount.
88%.
1.
230.0mm x 127.0mm x 40.6mm (9.06" x 5.00" x 1.60").
CB, CE, cURus.
12V.
