| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

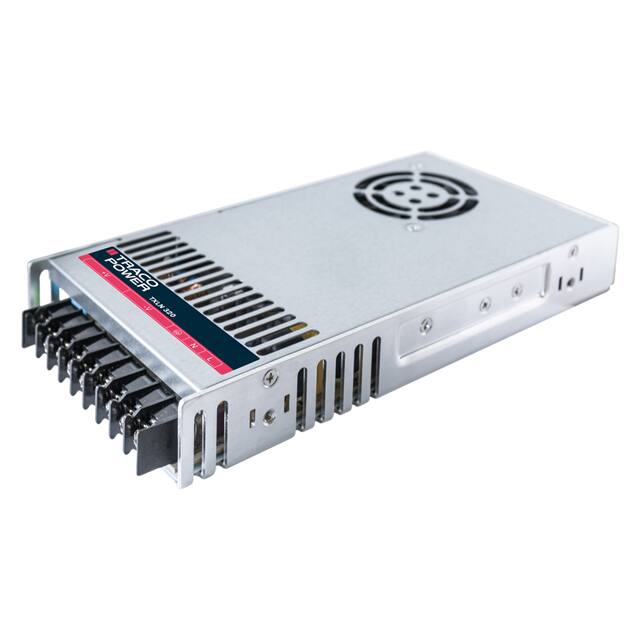

The TRACO Power TXLN 320-148 is an enclosed AC/DC converter designed for ITE (Commercial) applications. It provides a robust 322W of power with a 3kV voltage rating and a single output.
Key electrical specifications include an efficiency of 89%, a current rating of 6.7A, and features such as adjustable output, power factor correction (PFC), and universal input. The operating temperature range is -30°C to 70°C with derating.
Mechanically, this converter is designed for chassis mounting and has dimensions of 212.0mm in length, 115.0mm in width, and 30.0mm in height. It complies with standard number 62368-1 and carries approvals from CB, CE, and cURus agencies.
The output voltage is 48V.
-30°C to 70°C with derating.
89% typical.
CB, CE, and cURus approvals.
3 kV.
Chassis mount.
212mm x 115mm x 30mm (8.35 x 4.53 x 1.18 inches).
