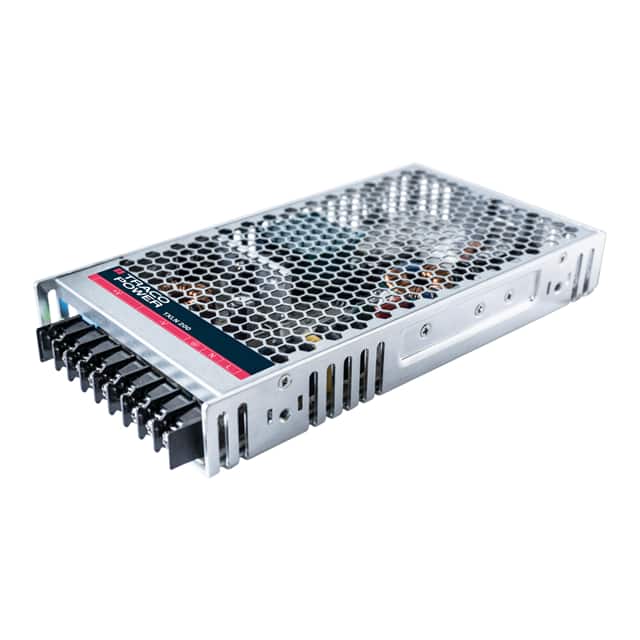

The Traco Power TXLN 200-105 is an enclosed AC/DC converter with a power rating of 200W and a current output of 40A. It is designed for chassis mounting and operates with a universal input, offering features such as adjustable output and Power Factor Correction (PFC).
This converter is suitable for ITE (Commercial) applications and has an efficiency of 83%. It provides 3kV of isolation voltage and operates within a temperature range of -30°C to 70°C, with derating applied at higher temperatures. The dimensions are 212.0mm in length, 115.0mm in width, and 30.0mm in height.
Compliance is met with standards such as 62368-1, and approval agencies include CB, CE, and cURus. The RoHS status is reported as RoHS3 Compliant, Moisture Sensitivity Level (MSL) is 1 Unlimited, and REACH Status is Unaffected. This part has a single output.
-30°C to 70°C with derating.
83%.
5V.
200W.
40A.
Chassis Mount.
CB, CE, cURus.
