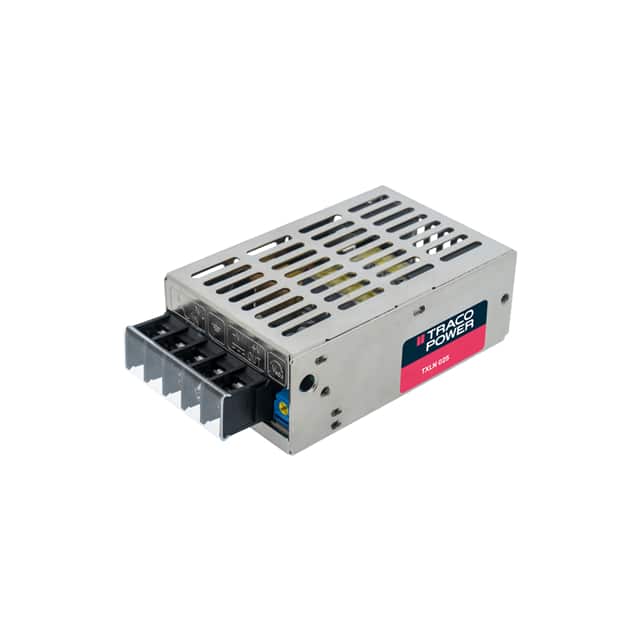

The Traco Power TXLN 025-103 is an enclosed AC/DC converter designed for ITE (Commercial) applications. It provides a power output of 20W with a current rating of 6A and features adjustable output and universal input capabilities.
This converter is designed for chassis mounting and operates within a temperature range of -20°C to 70°C with derating. It meets safety standards including CB, CE, and cURus, and complies with standard 62368-1.
Key electrical specifications include a 3 kV voltage rating and an efficiency of 72%. The physical dimensions are 79.0mm in length, 50.8mm in width, and 28.0mm in height.
The operating temperature range is -20°C to 70°C with derating.
The output is 3.3V at 6A.
The power rating is 20W.
It uses chassis mount.
It is approved to standard 62368-1 and carries CB, CE, and cURus approvals.
