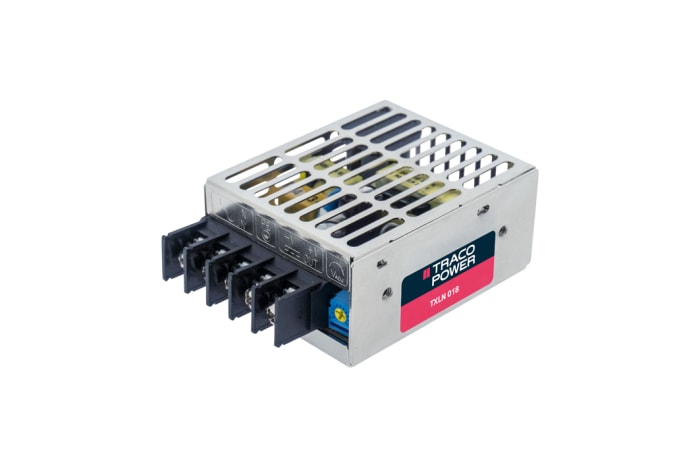

The Traco Power TXLN 018-115 is an 18W enclosed AC/DC power supply designed for cost-critical applications. It delivers a stable 15V output at 1.2A and accepts a universal input voltage range of 85V AC to 264V AC.
This power supply boasts a high efficiency of 84% and operates within a temperature range of -40°C to 70°C with derating. It features short circuit, overvoltage, and overload protection, making it suitable for ITE (Commercial) applications.
With a compact metal case and screw terminal block, the TXLN 018-115 is designed for easy installation. Its dimensions are 62.0mm x 50.8mm x 28.0mm, and it weighs 130g. The unit is convection cooled, eliminating the need for a fan.
Compliance includes UL 62368-1, REACH, and various EN standards, ensuring suitability for a wide range of electronic equipment.
The output voltage is 15V.
The maximum output current is 1.2A.
The power rating is 18W.
The input voltage range is 85V AC to 264V AC.
The operating temperature range is -40°C to 70°C (With Derating).
The dimensions are 62.0mm x 50.8mm x 28.0mm.
It complies with UL 62368-1, REACH, EN 62368-1, EN 61000-6-3, EN 61000-4-8, EN 61000-4-6, EN 61000-4-5, EN 61000-4-4, EN 61000-4-3, EN 61000-4-2, EN 61000-4-11, EN 61000-3-3, EN 61000-3-2 Class A, EN 55032 Class B, and EN 55024.
