| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Overload Protection | |
| Power (Watts) | |
| Storage Temperature | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Width |

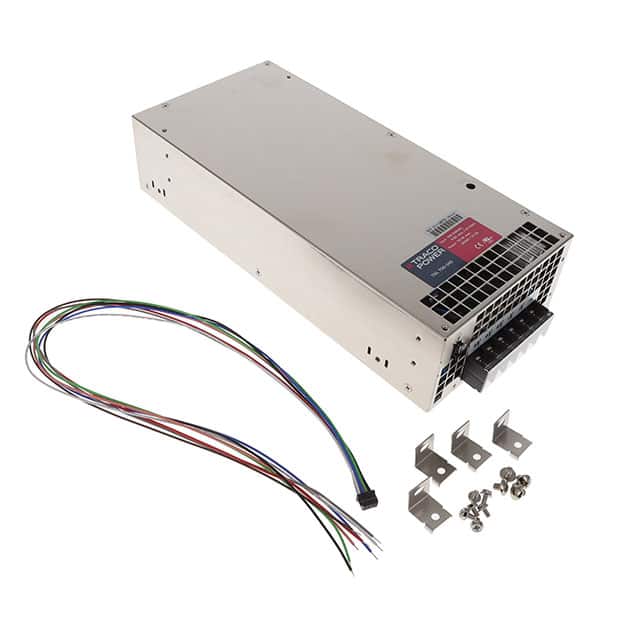

The TRACOPOWER TXL 750 Series is a family of 750 Watt encased AC/DC power supplies designed for cost-critical applications. The TXL 750-24S model offers a 24VDC output with a maximum current of 31.3A and a power rating of 751W.
This power supply features a universal input range of 90-264 VAC, ensuring compatibility across different power grids. It includes active power factor correction and complies with EMI/EMC standards EN 61000-6-3 and EN 61000-6-1, as well as EN 61000-3-2.
Designed for easy installation, it has a compact metal case with a screw terminal block. Key protection features include short circuit, overvoltage, and overload protection. The operating temperature range is -20°C to +70°C with derating.
This series is suitable for ITE (Commercial) applications and carries international safety approvals including CE and cURus. It also offers features like remote sense and remote on/off functionality.
The nominal output voltage is 24 VDC.
The maximum output current is 31.3 A.
The universal input voltage range is 90 - 264 VAC.
The operating temperature range is -20°C to +70°C, with derating applied above 50°C.
Yes, it features hiccup mode short circuit protection with automatic recovery.
The dimensions are 275.0mm (Length) x 125.0mm (Width) x 63.0mm (Height).
