| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Overload Protection | |
| Power (Watts) | |
| Storage Temperature | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Width |

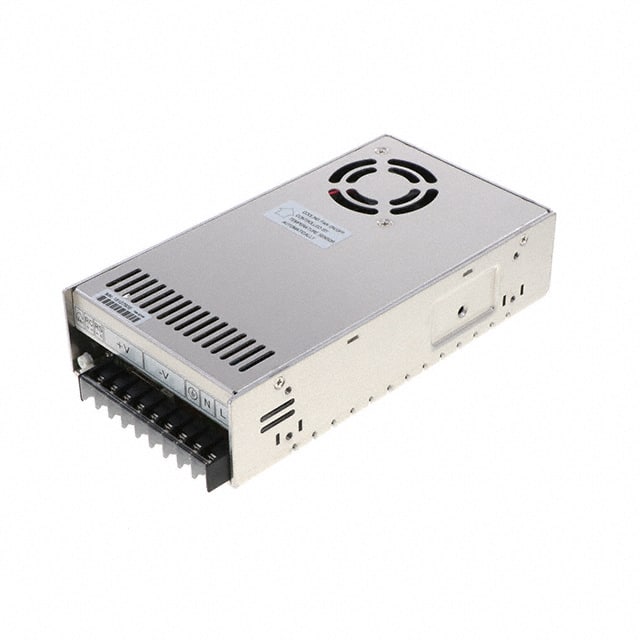

The Traco Power TXL 350-48S is a 360W enclosed AC/DC power supply designed for cost-critical applications. It features a compact metal case with screw terminal block connections for easy installation.
This converter operates with a universal input voltage range of 85-264 VAC and provides a nominal output voltage of 48VDC with a maximum current of 7.5A. Key electrical specifications include a typical efficiency of 84%, active power factor correction (PF > 0.95), and an output voltage adjustment range of ±10%.
Designed for ITE (Commercial) applications, the TXL 350-48S includes features such as adjustable output, remote on/off, and remote sense. It offers protection against short circuits and overvoltage. The operating temperature range is -20°C to 70°C with derating, and it has an isolation voltage of 3000 VAC between input and output.
With its chassis mount type and enclosed form factor, this AC/DC converter is suitable for integration into various equipment. It complies with CE and cURus safety approvals.
The output voltage is 48 VDC nominal, adjustable by ±10%.
The input voltage range is 85 to 264 VAC at 47 to 63 Hz.
The maximum power output is 360 W.
The dimensions are 212.1 mm x 115.1 mm x 50.0 mm.
Overload protection by current limitation, short circuit protection in hiccup mode (automatic recovery), and overvoltage protection with latch-off (recovery after restart).
Typical efficiency is 84%.
The operating temperature range is -20°C to +70°C with derating above +50°C.
