| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Overload Protection | |
| Power (Watts) | |
| SVHC Present | |
| Storage Temperature | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Width |

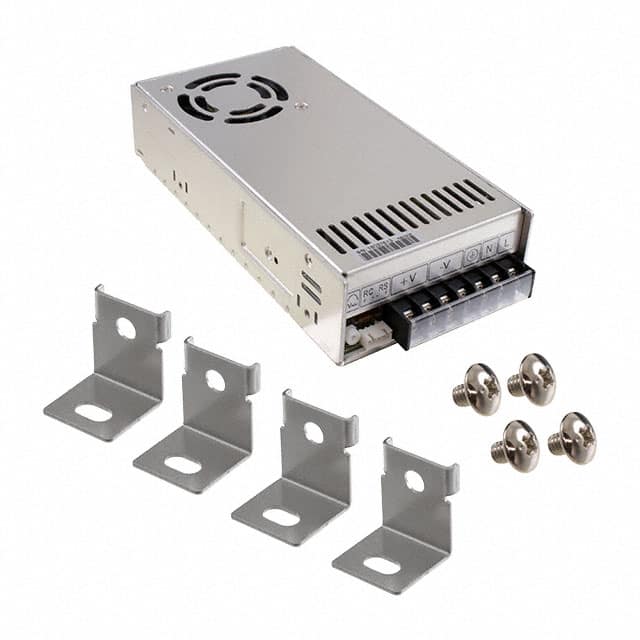

The Traco Power TXL 230 Series, specifically the TXL 230-48S model, is a 230 Watt AC/DC enclosed power supply designed for cost-critical applications. It features a compact metal case with a screw terminal block for easy installation.
This power supply operates with a universal input voltage range of 85-264 VAC and provides a nominal output voltage of 48 VDC with a maximum current of 4.8 A. It boasts a typical efficiency of 86% and includes features such as adjustable output, remote on/off, and remote sense capabilities. The unit is designed for chassis mounting.
Key electrical specifications include a wide input frequency range of 47-63 Hz and active power factor correction. Protection features include overload protection by current limitation, short circuit protection in hiccup mode, and overvoltage protection. The operating temperature range is -20°C to 70°C with derating, and it complies with international safety approvals like CE and cURus.
Environmental compliance includes RoHS3 compliance and an MSL 1 rating. The dimensions are 198.1mm x 99.1mm x 45.0mm. This power supply is suitable for ITE (Commercial) applications.
The nominal output voltage is 48 VDC.
The maximum output current is 4.8 A.
The universal input voltage range is 85-264 VAC.
The typical efficiency is 86%.
The operating temperature range is -20°C to 70°C, with derating.
It supports chassis mount.
Yes, it features overload protection by current limitation.
