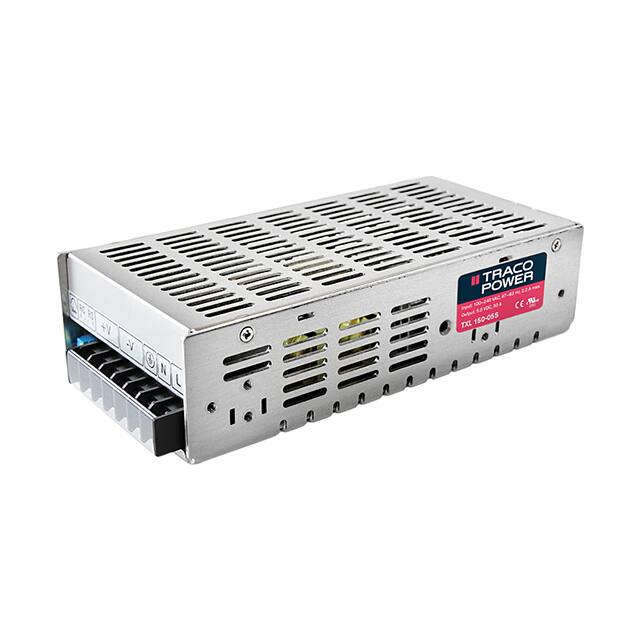

The TRACOPOWER TXL 150 Series is a family of 150 Watt encased AC/DC power supplies designed for cost-critical applications. This specific model, the TXL 150-05S, provides a 5VDC output at up to 30A, delivering a total of 150W.
It features a compact metal case with a screw terminal block, making installation easy. The universal input range of 85-264 VAC simplifies global deployment. Key electrical specifications include adjustable output voltage within ±10%, active power factor correction, and compliance with EMI/EMC standards EN 61000-6-3 and EN 61000-6-1, as well as EN 61000-3-2.
Protection features include short circuit, overvoltage, and overload protection. The operating temperature range is -20°C to +70°C with derating. Mounting is via chassis mount, and the unit is designed for ITE (Commercial) applications.
This series complies with the Low Voltage Directive (LVD) and offers international safety approvals including CE and cURus. It comes with a 3-year product warranty.
The nominal output voltage is 5 VDC.
The maximum output current is 30 A.
The power rating is 150W.
The universal input voltage range is 85 - 264 VAC.
The operating temperature range is -20°C to +70°C with derating.
It uses chassis mount.
The dimensions are 198.9mm (Length) x 99.1mm (Width) x 50.0mm (Height).
