| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Compliance | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Overload Protection | |
| Power (Watts) | |
| Protection | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Width |

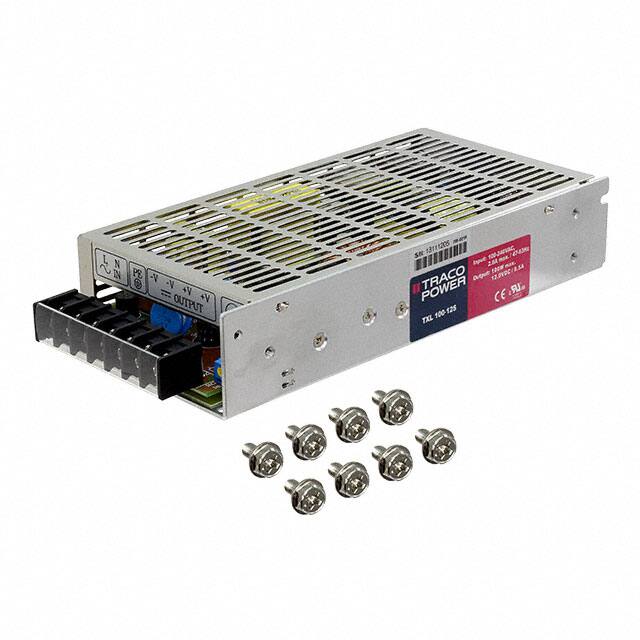

The TRACO POWER TXL 100 Series is a family of 100 Watt encased AC/DC power supplies designed for cost-critical applications. The TXL 100-12S model provides a 12VDC output with a maximum current of 8.5A, delivering 102W of power.
This power supply features a compact metal case with a screw terminal block for easy installation. It offers universal input voltage compatibility (85-264 VAC) and complies with European EMC standards and the Low Voltage Directive (LVD). Key electrical specifications include 83% typical efficiency, adjustable output voltage for the main output (±10%), and comprehensive protection features like short circuit and overvoltage protection.
The unit is designed for chassis mounting and operates within a temperature range of -20°C to 70°C with derating. It meets EMI/EMC compliance standards EN 61000-6-3 and EN 61000-6-1, and also complies with EN 61000-3-2. The TXL 100-12S is suitable for ITE (Commercial) applications and comes with international safety approvals including CE and cURus.
The output voltage is 12 VDC.
The maximum output current is 8.5 A.
The power rating is 102W.
The typical efficiency is 83%.
The operating temperature range is -20°C to 70°C (With Derating).
It is designed for chassis mounting.
It complies with EN 61000-6-3 and EN 61000-6-1.
