| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

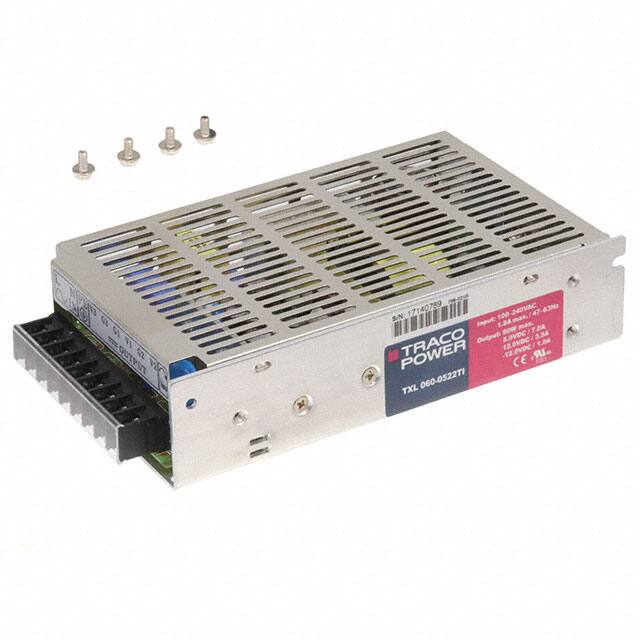

This Traco Power TXL 060-0522TI is an enclosed AC/DC converter designed for ITE (Commercial) applications. It provides a total power of 60W and features adjustable output with universal input.
The converter has three outputs, including 12V with a current rating of 1A. It operates within a temperature range of -20°C to 70°C with derating.
With a chassis mount type, this unit measures 159.0mm in length, 95.0mm in width, and 38.1mm in height. It boasts an efficiency of 84% and is compliant with RoHS3 standards.
Key specifications include a 1A current output and approvals from CE and cURus, making it suitable for various commercial applications.
It provides three outputs: 5V and two 12V rails.
The power rating is 60 watts.
The operating temperature range is -20°C to 70°C with derating.
It uses chassis mount.
Dimensions are 159.0mm x 95.0mm x 38.1mm.
It is approved to CE and cURus standards.
