| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Input Voltage | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| SVHC Present | |
| Type | |
| Voltage |

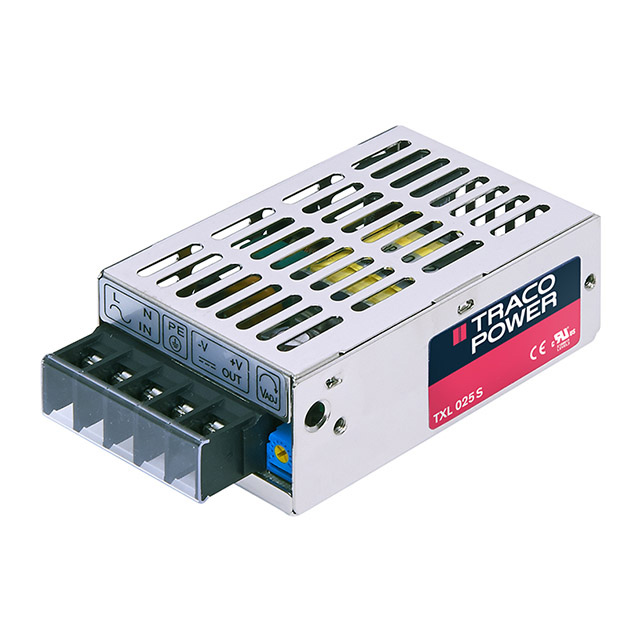

The Traco Power TXL 025-3.3S is an enclosed AC/DC converter designed for ITE (Commercial) applications. It provides a single output of 3.3V with a current capability of 6A, delivering a total power of 20W.
This converter features a universal input voltage range of 85 to 264 VAC or 120 to 375 VDC. It boasts an efficiency of 84% and offers adjustable output and universal input features. The isolation voltage is rated at 3 kV.
Designed for chassis mounting, the TXL 025-3.3S has dimensions of 79.0mm x 51.1mm x 28.4mm. It operates within a temperature range of -20°C to 70°C with derating. Approval agencies include CE and cURus.
The output voltage is 3.3V.
The maximum output current is 6A.
The power rating is 20W.
The input voltage range is 85 to 264 VAC or 120 to 375 VDC.
The operating temperature range is -20°C to 70°C (With Derating).
It uses chassis mount.
