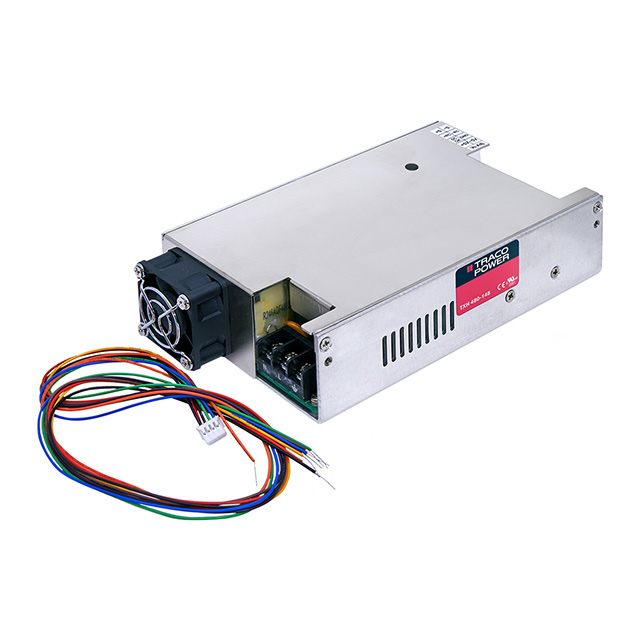

The Traco Power TXH 480-148 is an enclosed AC/DC converter designed for ITE (Commercial) applications. It provides a single 48V output with a current rating of 10A, delivering a total power of 480W.
This converter operates with a universal input voltage range of 90-264 VAC or 120-370 VDC, offering flexibility in power sources. It boasts a high efficiency of 91% and features like adjustable output and remote On/Off control. The isolation voltage is rated at 3 kV.
With a chassis mount type, the TXH 480-148 has dimensions of 202.8mm x 106.5mm x 45.0mm. It is designed to operate within an ambient temperature range of -25°C to 70°C, with derating applied. The unit is approved by CB, CE, and cURus agencies, ensuring compliance with various safety standards.
90 to 264 VAC and 120 to 370 VDC.
48V at 10A.
91%.
3 kV.
-25°C to 70°C with derating.
Enclosed, chassis mount.
CB, CE, cURus.
