| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage |

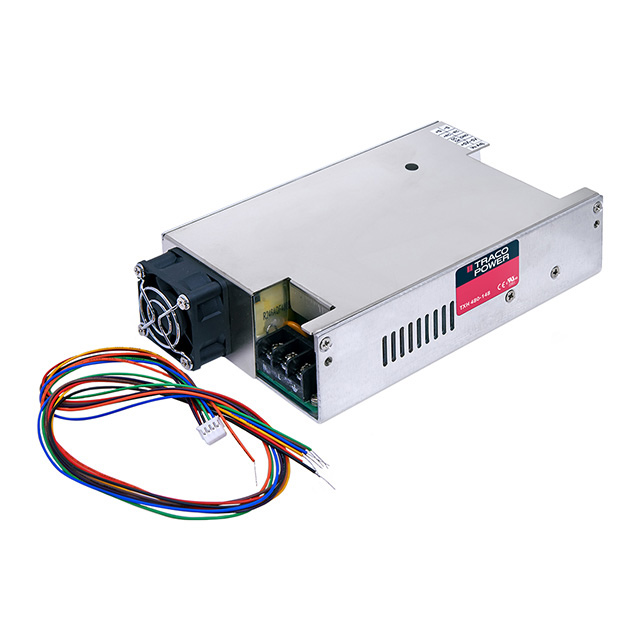

The Traco Power TXH 480-112 is an enclosed AC/DC converter designed for ITE (Commercial) applications. It provides a single output of 12V at 40A, with a total power rating of 480W. The converter accepts a wide input voltage range of 90-264 VAC or 120-370 VDC, offering universal input capability.
Key features include adjustable output voltage, remote on/off control, and an efficiency of 88%. The unit is designed for chassis mounting and has dimensions of 202.8mm x 106.5mm x 45.0mm. Its operating temperature range is -25°C to 70°C with derating. The isolation voltage is rated at 3 kV.
This AC/DC converter is approved by CB, CE, and cURus agencies, indicating compliance with various safety and performance standards. It is suitable for applications requiring a reliable and versatile power supply solution.
90-264 VAC or 120-370 VDC.
12V at 40A.
480W.
88%.
3kV.
-25°C to 70°C with derating.
Enclosed, chassis mount.
