| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

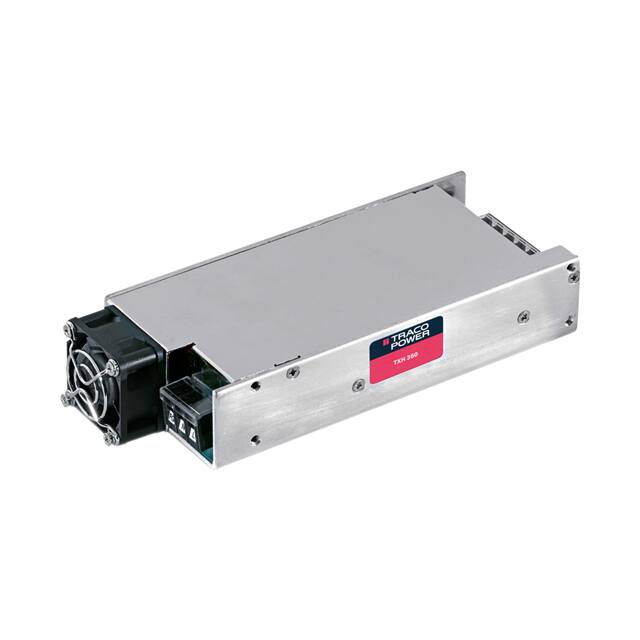

The Traco Power TXH 360-148 is an enclosed AC/DC power supply designed for ITE (Commercial) applications. It delivers a power output of 360W with a current rating of 7.5A and features a 3kV isolation voltage.
Key electrical specifications include a high efficiency of 93% and a universal input capability. The converter offers features such as adjustable output and remote on/off control, providing flexibility in system design.
Mechanically, this unit is designed for chassis mounting and has dimensions of 197.7mm in length, 81.3mm in width, and 38.0mm in height. The operating temperature range is -25°C to 70°C, with derating applied at higher temperatures.
Compliance includes CB, CE, and cURus approvals. The RoHS status is listed as RoHS3 Compliant, Moisture Sensitivity Level (MSL) is 1 Unlimited, and REACH status is Unaffected. These compliance details are based on available data and may require verification.
The TXH 360-148 has a power output of 360W.
The output current for the TXH 360-148 is 7.5 A.
The operating temperature range is -25°C to 70°C (With Derating).
The TXH 360-148 is designed for chassis mount.
Key features include adjustable output, remote on/off, and universal input.
