| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Type | |
| Voltage | |
| Width |

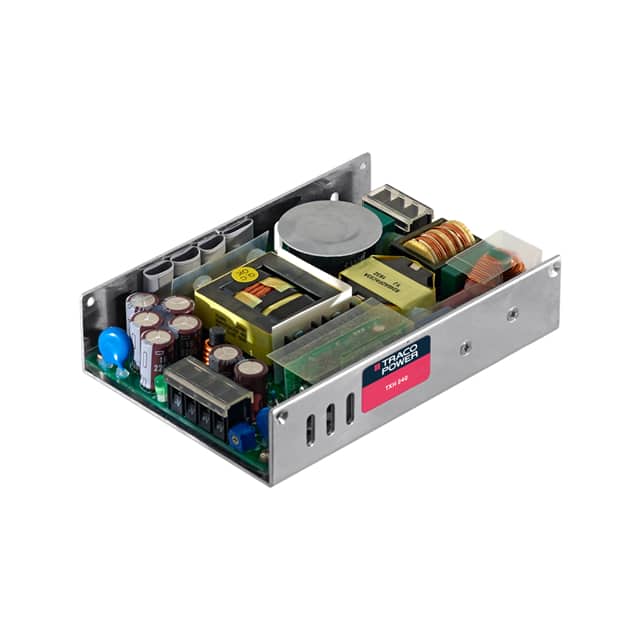

The Traco Power TXH 240-124 is an enclosed AC/DC converter designed for ITE (Commercial) applications. It delivers 240W of power with a 10A current output and operates with 92% efficiency.
This converter features a chassis mount type and includes adjustable output, remote on/off functionality, and universal input. Its dimensions are 150.1mm in length, 105.9mm in width, and 35.1mm in height. The operating temperature range is -10°C to 70°C with derating.
Key electrical specifications include a single output and an isolation voltage of 4 kV. The unit is RoHS3 compliant and has an MSL of 1 Unlimited.
The TXH 240-124 provides a single output of 24V DC at 10A.
The TXH 240-124 is rated for 240W of output power.
The TXH 240-124 has an efficiency rating of 92%.
The TXH 240-124 operates from -10°C to 70°C with derating.
The TXH 240-124 uses chassis mount packaging.
The TXH 240-124 is approved by CB, CE, and cURus agencies.
The TXH 240-124 provides 4 kV of isolation voltage.
