| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

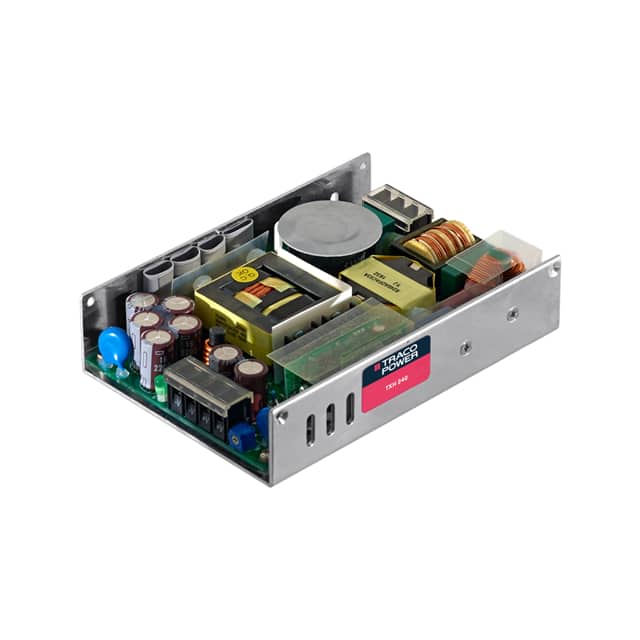

The Traco Power TXH 240-112 is an enclosed AC/DC converter with a power rating of 240W and an output current of 20A. It is designed for chassis mounting and offers features such as adjustable output, remote on/off capability, and universal input.
This converter operates with an efficiency of 90% and provides an isolation voltage of 4kV. The operating temperature range is -10°C to 70°C with derating. It is suitable for ITE (Commercial) applications and is approved by CB, CE, and cURus.
The dimensions of the TXH 240-112 are 150.1mm in length, 105.9mm in width, and 35.1mm in height. It has a single output and is compliant with RoHS3 standards.
The converter provides a 12V DC output capable of delivering up to 20A.
It features 4kV of reinforced isolation between the input and output circuits.
The unit is approved by CB, CE, and cURus agencies.
It measures 150.1mm x 105.9mm x 35.1mm and uses a chassis mount design.
The device operates reliably from -10°C to 70°C, with derating required above 50°C.
Yes, it is designed with universal input capability for global voltage compatibility.
