| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
82,182 pcs
|
82182 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
28,300 pcs
|
28300 pcs | On Request | 1 | On Request | On Request | 1444+5 | On Request | On Request | |
|
5,450 pcs
|
5450 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2,189 pcs
|
2189 pcs | On Request | 1 | On Request | On Request | 21+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Channel Type | |
| Channels per Circuit | |
| Data Rate | |
| ESD Protection | |
| Features | |
| Latch-up Performance | |
| Mounting Type | |
| Number of Channels | |
| Number of Circuits | |
| Operating Temperature | |
| Output Type | |
| Propagation Delay | |
| Supplier Device Package | |
| Supplier Package | |
| Supply Current | |
| Translator Type | |
| Voltage |
The Texas Instruments TXB0108YZPR is an 8-bit bidirectional voltage-level translator designed for flexible voltage translation between different logic levels. It features auto-direction sensing, eliminating the need for a direction control pin and simplifying system design.
This device supports a wide operating voltage range, accommodating 1.2V to 3.6V on the A port and 1.65V to 5.5V on the B port, with VCCA less than or equal to VCCB. It can achieve data rates up to 100Mbps with a low propagation delay of 4ns. The TXB0108YZPR also includes features such as edge rate acceleration, output enable, and partial power-down mode (Ioff) for reduced power consumption, with a typical supply current of 0.011mA.

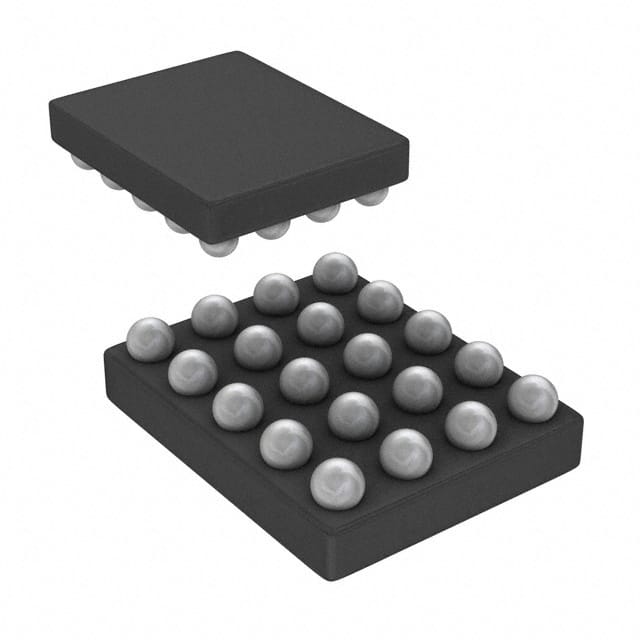

Packaged in a 20-DSBGA, the TXB0108YZPR is suitable for surface mount applications. It operates within a temperature range of -40°C to 85°C. The device offers robust ESD protection, exceeding JESD 22 standards for both A and B ports, and meets latch-up performance requirements.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.66 | $0.66 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The A-port operates from 1.2V to 3.6V and the B-port from 1.65V to 5.5V.
20-DSBGA (20-pin Die-Size Ball Grid Array) surface mount package.
-40°C to 85°C (TA).
100 Mbps.
Yes, it has 8 bidirectional channels.
±15kV Human-Body Model (A114-B) and 1000V Charged-Device Model (C101).
Auto-direction sensing, edge rate accelerator, output enable, partial power down (Ioff), and Vcc isolation.
