| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
90,400 pcs
|
90400 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2,950 pcs
|
2950 pcs | On Request | 1 | On Request | On Request | 24+ | On Request | On Request | |
|
2,500 pcs
|
2500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
205 pcs
|
205 pcs | On Request | 1 | On Request | On Request | 20+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Channel Type | |
| Channels per Circuit | |
| Data Rate | |
| Features | |
| Mounting Type | |
| Number of Circuits | |
| Operating Temperature | |
| Output Type | |
| Supplier Device Package | |
| Translator Type | |
| Voltage |
The TXB0104ZXUR from Texas Instruments is a versatile bidirectional voltage level translator designed for seamless voltage domain crossing. This device features auto-direction sensing, simplifying circuit design by automatically detecting the direction of data flow.
With an operating voltage range from 1.2V to 3.6V, the TXB0104ZXUR is suitable for a wide array of applications requiring level shifting between different logic levels. It supports a robust data rate of 100Mbps, ensuring efficient data transfer. The translator is configured with 4 channels per circuit and a single circuit per device, offering flexibility in system integration.

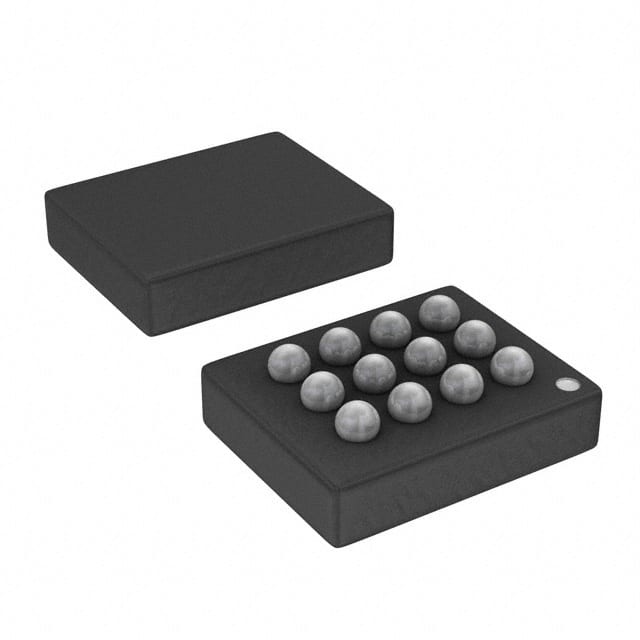

Packaged in a compact 12-UFBGA (12-BGA Microstar Junior) format, the TXB0104ZXUR is designed for surface mount applications. Its operating temperature range is -40°C to 85°C (TA), making it suitable for various environmental conditions. The output type is Tri-State, Non-Inverted, providing reliable signal integrity.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.12 | $0.12 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is 1.2 V to 3.6 V.
It is available in a 12-UFBGA package (12-BGA Microstar Junior, 2.5x2 mm).
The operating temperature range is -40°C to 85°C.
It has 4 bidirectional channels.
The maximum data rate is 100 Mbps.
No, it features auto-direction sensing.
The outputs are tri-state, non-inverted.
