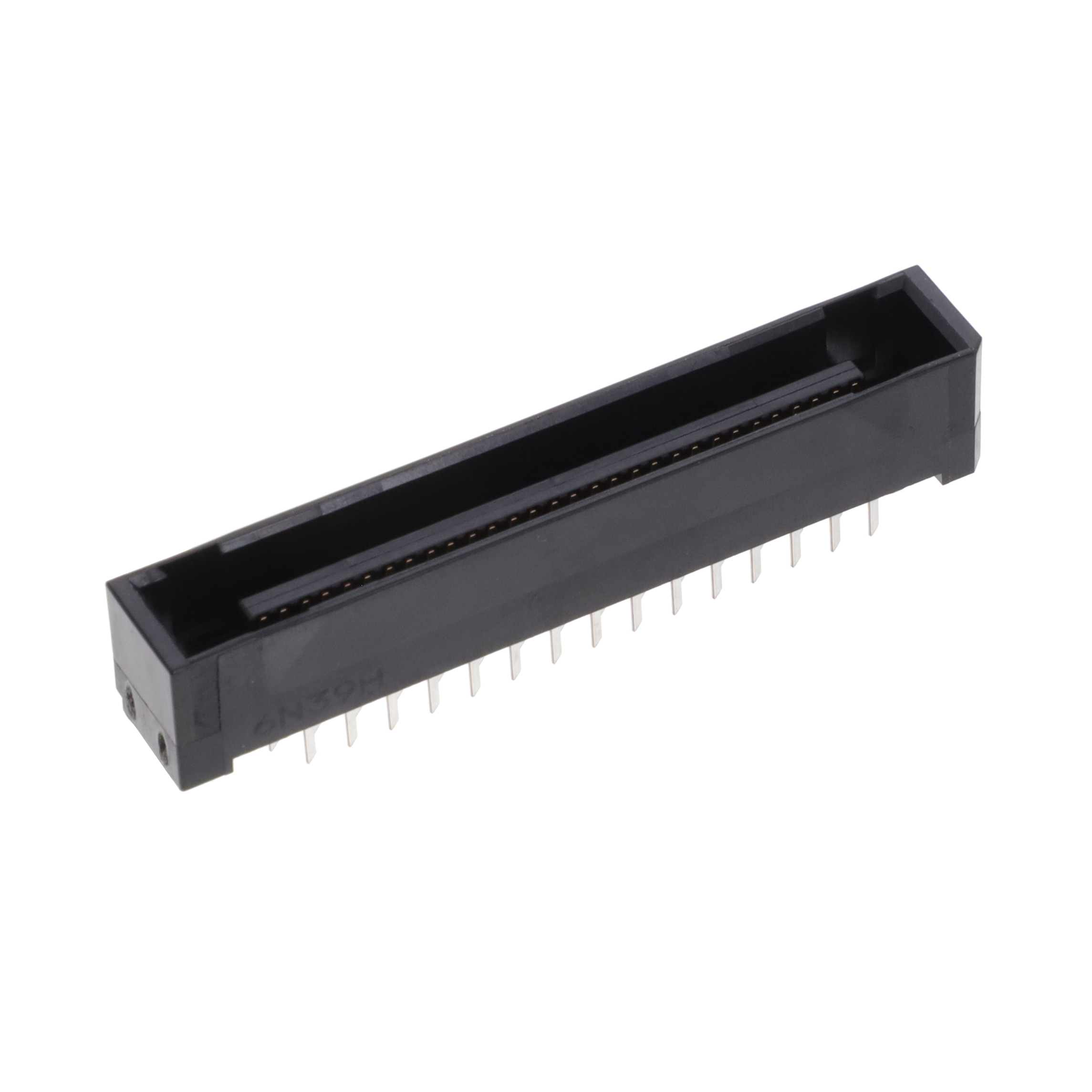

The JAE Electronics TX25-60P-6ST-H1E is a board-to-board connector plug from the TX25 series. It features 60 positions arranged in 2 rows with a 1.27mm pitch. The connector uses through hole mounting and has gold-plated contacts with a thickness of 4.00µin (0.100µm). It includes a board lock feature for secure attachment to the PCB. The height above board is 0.362" (9.20mm), and it supports mated stacking heights of 12mm, 16mm, and 18mm. Electrically, it is rated for 0.5A current and 200VAC/300VDC voltage. The connector is designed for 500 mating cycles. This plug is suitable for mezzanine board-to-board applications requiring a compact, high-density interconnect solution. It is compliant with RoHS3, REACH, and has an MSL rating of 1 (unlimited).
