| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,450 pcs
|
4450 pcs | On Request | 1 | On Request | On Request | 17+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Height Above Board | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch |

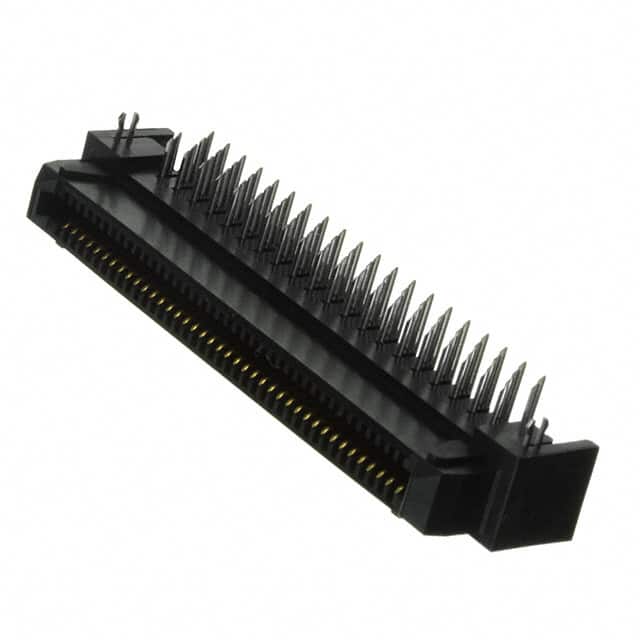

The JAE Electronics TX24-80R-LT-H1E is a high-density receptacle connector from the TX24 series, designed for reliable board-to-board interconnections.
This connector offers 80 positions with a fine pitch of 1.27mm, enabling compact PCB designs. It features a gold contact finish for excellent conductivity and durability, and a right-angle through-hole mounting type for secure PCB attachment. The connector has a height above board of 9.00mm and includes a board lock feature for enhanced mechanical stability.
With its robust design and precise specifications, the TX24-80R-LT-H1E is suitable for various electronic applications requiring dependable mezzanine connections. The outer shroud contacts ensure proper alignment and mating.
Key specifications include 80 positions, a 1.27mm pitch, and a gold contact finish. The mounting type is right-angle through-hole, and it offers a board lock feature for added security.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.00 | $1.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 80 positions.
The pitch is 1.27mm (0.050").
It is through hole, right angle mounting.
It has 2 rows.
The contacts are gold plated with a thickness of 4.00µin (0.100µm).
The height above board is 9.00mm (0.354").
Yes, it includes a board lock.
