| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
104 pcs
|
104 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Current Rating | |
| Durability | |
| Features | |
| Height Above Board | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Voltage Rating |

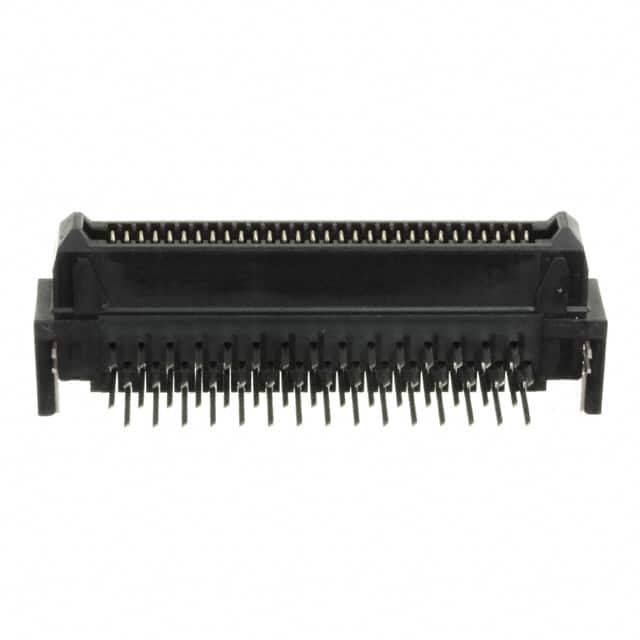

The JAE Electronics TX24-60R-LT-H1E is a 60-position right-angle board-to-board receptacle connector from the TX24 series. It features a 1.27mm (0.050") pitch with 2 rows of gold-plated contacts (4.00µin thickness). The through-hole right-angle mounting design includes a board lock for secure attachment to the PCB.
Rated for 250VAC and 1.0A continuous current, this connector is suitable for mezzanine board-to-board stacking applications. It is rated for 500 mating cycles providing reliable durability. The outer shroud contact design ensures robust connection.
Compliance includes RoHS3, REACH unaffected, and MSL Level 1 (unlimited). The connector is designed for use in industrial, consumer, and communication equipment requiring high-density signal routing.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.84 | $2.84 |
| 10+ | $2.42 | $2.42 |
| 25+ | $2.26 | $2.26 |
| 50+ | $2.16 | $2.16 |
| 100+ | $2.05 | $2.05 |
| 250+ | $1.92 | $1.92 |
| 528+ | $1.83 | $1.83 |
| 1,056+ | $1.74 | $1.74 |
| 2,640+ | $1.63 | $1.63 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
60 positions.
1.27mm (0.050").
1.0A.
250VAC.
Through hole, right angle.
Gold, 4.00µin (0.100µm) thickness.
Yes, it includes board lock.
