| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,821 pcs
|
1821 pcs | On Request | 1 | On Request | On Request | 17+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Mounting Type | |
| Operating Temperature | |
| Supplier Device Package | |
| Voltage |
The TWL6032A2B7YFFR from Texas Instruments is a highly integrated Power Management IC (PMIC) designed for advanced power management needs. It incorporates a robust power path and battery charger system, suitable for demanding applications.
The device features five highly efficient buck converters, including one capable of 5.0 A with DVS, and another at 2.5 A. Additionally, it provides eleven general-purpose low-dropout voltage regulators (LDOs) with various output current capabilities, including a 3.3 V USB LDO. The TWL6032 also includes a 12-bit Sigma-Delta Analog-to-Digital Converter (ADC) with 19 input channels and a 13-bit Coulomb counter.
Designed for operation in challenging environments, the TWL6032A2B7YFFR operates within a temperature range of -40°C to 85°C. Its input voltage range is from 2.5 V to 4.8 V, with output voltages ranging from 0.6 V to 3.3 V. The PMIC supports low-power consumption modes, drawing as little as 8 µA in backup state.

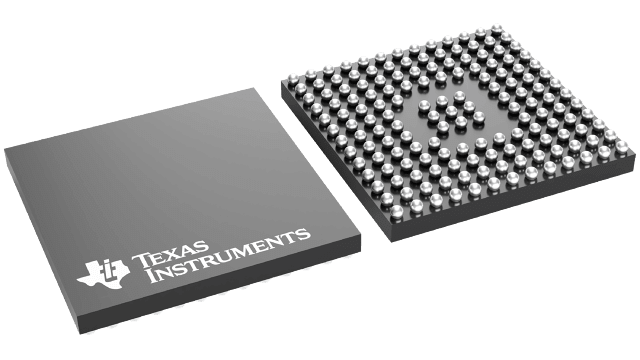

Packaged in a 155-DSBGA (5.21x5.36) format, this surface-mount device is ideal for compact designs. Its applications include handheld and mobile devices, particularly those utilizing the OMAP™ platform.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.05 | $6.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 2.5 V to 4.8 V.
The operating temperature range is -40°C to 85°C.
It is supplied in a 155-DSBGA (5.21x5.36) package.
The device integrates five highly efficient buck converters.
It includes eleven general-purpose low-dropout voltage regulators (LDOs).
The low-power consumption in backup state is 8 µA.
