| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
72 pcs
|
72 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Finish | |
| Contact Finish Thickness | |
| Data Rate | |
| Halogen Free | |
| Lead Spacing | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Overall Length | |
| Packaging Type | |
| Pitch | |
| Row Spacing | |
| Stack Height | |
| Standard Package Quantity | |
| Tape & Reel | |
| Termination |

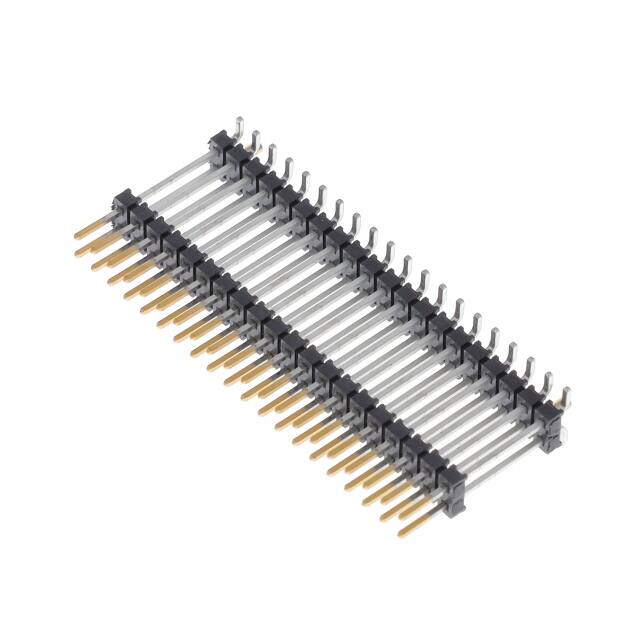

The Samtec TW-20-07-L-D-500-SM-A is a 40 position, 2 row board stacker from the TW series, designed for elevated board stacking applications. It features a 2.00mm (0.079") pitch and a 0.500in stack height, with an overall length of 0.751in. The connector uses surface mount termination with solder contacts and a gold contact finish of 10.0µin (0.25µm).
This board stacker supports data rates up to 8 Gbps, making it suitable for high-speed signal applications. The connector body is black and comes in a tube packaging with a standard package quantity of 14 pieces. The contact system uses 0.020" (0.50 mm) square posts in a vertical orientation.
The TW-20-07-L-D-500-SM-A is part of Samtec's flexible stacking solution, allowing for non-standard board stacking heights. It is designed for surface mount assembly and is RoHS3 compliant and REACH unaffected.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.29 | $7.29 |
| 10+ | $6.97 | $6.97 |
| 25+ | $6.52 | $6.52 |
| 50+ | $6.00 | $6.00 |
| 100+ | $5.80 | $5.80 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The TW-20-07-L-D-500-SM-A has 40 positions arranged in 2 rows.
The pitch is 2.00mm (0.079").
The stack height is 0.500in.
The mounting type is surface mount with solder termination.
The contact finish is gold with a thickness of 10.0µin (0.25µm).
The connector supports data rates up to 8 Gbps.
It is available in tube packaging with a standard package quantity of 14 pieces.
