| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,099 pcs
|
1099 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Channels | |
| Halogen Free | |
| Height | |
| Length | |
| Voltage | |
| Weight | |
| Width |

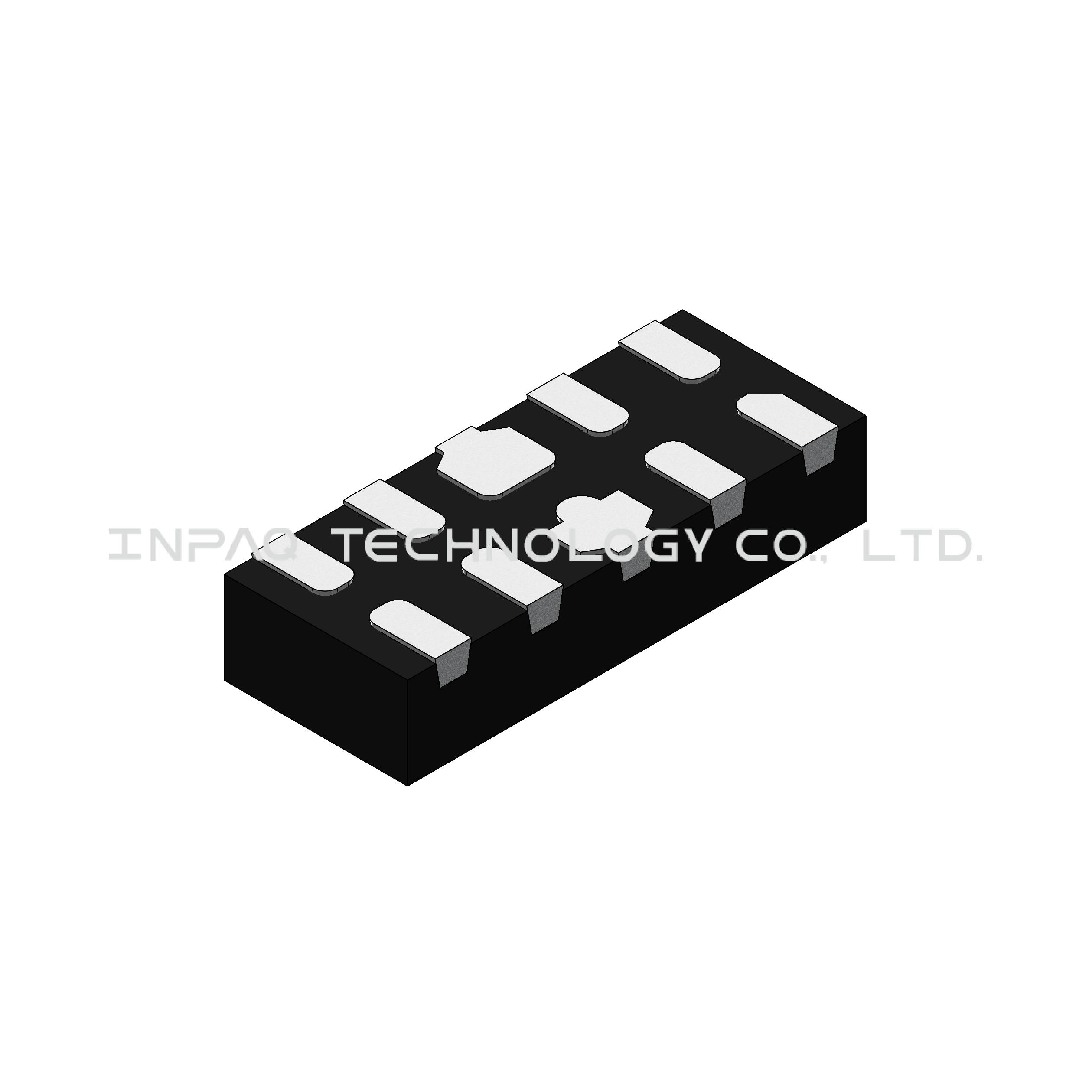

The INPAQ TVU3V3U4SA-DFN2510-10L is a transient voltage suppressor (TVS) diode designed to protect sensitive electronic components from voltage transients. This device is suitable for protecting high-speed data lines, including Thunderbolt, USB3.x, Type-C, HDMI, Display Ports, and Ethernet (10/100/1000) interfaces.
Key electrical specifications include a working voltage of 3.3V, a peak pulse current of 3A, and contact/air discharge ratings of 9V and 12V respectively. It offers capacitance values of 0.25pF and 0.3pF. The device has 4 channels and a unidirectional polarity.
Mechanically, the TVU3V3U4SA-DFN2510-10L is housed in a DFN2510 package with dimensions of 2.5mm x 1mm x 0.5mm. It is supplied in tape and reel packaging with a standard reel quantity of 3000 pieces. The component is RoHS3 compliant and Halogen Free.
This TVS diode is intended for general equipment applications where robust overvoltage protection is required for high-speed interfaces.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.94 | $1.94 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The working voltage is 3.3V.
The package type is DFN2510.
It has 4 channels.
The peak pulse current is 3A.
The dimensions are 2.5mm in length, 1mm in width, and 0.5mm in height.
The RoHS status is RoHS3 Compliant.
The MSL is Level 1 Unlimited.
