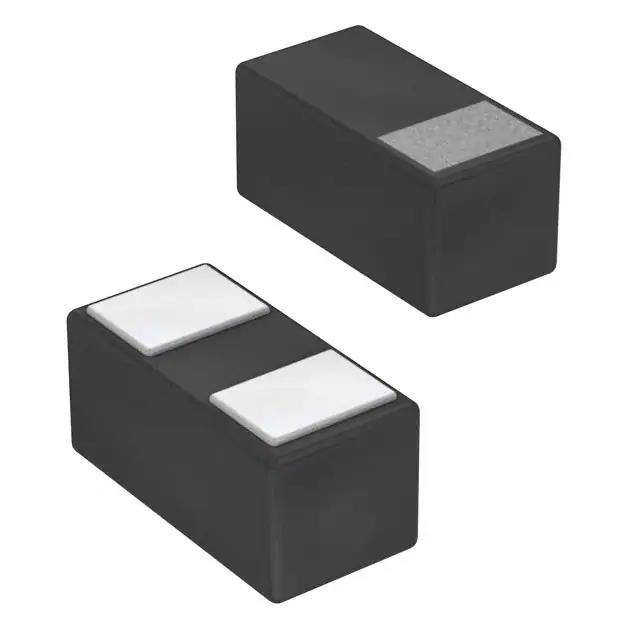

TVS5501V10MUT5G Uni-directional transient voltage suppressor with 10V reverse working voltage and 60A peak pulse current capability. Provides ±30kV ESD protection per IEC61000-4-2.
Mfr Part #:

TVS5501V10MUT5G

Available from 1 distributors
Mfr Name: On Semiconductor
On Semiconductor
Uni-directional transient voltage suppressor with 10V reverse working voltage and 60A peak pulse current capability. Provides ±30kV ESD protection per IEC61000-4-2.
✓ Total Stock: 1,267,000 pcs
$ Price Range: $0.28

TVS5501V10MUT5G Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
1,267,000 pcs
On Request
1267000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TVS5501V10MUT5G Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Halogen Free
Junction Capacitance
Lead Style
Mounting Type
Operating Temperature Range
Tape & Reel
Termination Style
View Similar Products (0)

TVS5501V10MUT5G Description

Short technical summary and product information.

The TVS5501V10MUT5G is a uni-directional transient voltage suppressor from On Semiconductor designed to protect sensitive electronics from electrostatic discharge and lightning-induced surges. It features a reverse working voltage of 10V and a typical breakdown voltage of 12V at 1mA test current.



This device offers robust protection with a peak pulse current rating of 60A (8/20 µs waveform per IEC61000-4-5) and ESD protection of ±30kV for both contact and air discharge per IEC61000-4-2 Level 4. Typical clamping voltage is 15V at 10A and 20V at 60A, with a low dynamic resistance of 0.05Ω.



The TVS5501V10MUT5G is housed in a surface-mount UDFN2 package (Case 517CZ) with no lead termination. It is RoHS3 compliant, Pb-Free, and Halogen Free/BFR Free. Operating junction and storage temperature range is -65 to +150°C.

TVS5501V10MUT5G Quick Information

Product Type: TVS Diode
Series: TVS5501
Canonical Name: TVS5501V10MUT5G Uni-Directional Transient Voltage Suppressor
Subcategory: Uni-Directional TVS

TVS5501V10MUT5G Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

TVS5501V10MUT5G Estimated Pricing

Qty Low High
1,072+ $0.28 $0.28

Estimated market price range - modelled values for guidance only, not live distributor offers.

TVS5501V10MUT5G Features

  • Provides ±30kV ESD protection per IEC61000-4-2.
  • Handles 60A peak pulse current per IEC61000-4-5.
  • Low dynamic resistance of 0.05 ohms.
  • RoHS3 compliant, Pb-Free, and Halogen Free.
  • Surface mount UDFN2 package with no lead.

TVS5501V10MUT5G Applications

  • Protects I/O lines from ESD events.
  • Used in portable electronics and wearables.
  • Suitable for lightning surge protection circuits.
  • Ideal for high-speed data line protection.

TVS5501V10MUT5G FAQs

7 frequently asked questions generated from this part’s specifications.
What is the reverse working voltage of the TVS5501V10MUT5G?

The reverse working voltage (VRWM) is 10V.

What is the peak pulse current rating?

The maximum peak pulse current (IPP) is 60A for an 8/20 µs waveform at 25°C.

What ESD protection level does this TVS diode provide?

It provides ±30kV contact and ±30kV air discharge protection per IEC61000-4-2 Level 4.

What is the clamping voltage at 10A?

The typical clamping voltage (VC) at IPP = 10A is 15V.

What package is the TVS5501V10MUT5G available in?

It is available in a UDFN2 package (Case 517CZ) for surface mount applications.

Is this component RoHS compliant?

Yes, it is RoHS3 compliant, Pb-Free, and Halogen Free/BFR Free.

What is the junction capacitance of this TVS diode?

The typical junction capacitance is 400pF at 0V and 1MHz.
