| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Country of Origin | |
| Current | |
| Failure Rate | |
| Housing Material | |
| Length | |
| Number of Contacts | |
| Number of Rows | |
| Pitch | |
| Product Type | |
| Storage Temperature | |
| Tape & Reel | |
| Voltage | |
| Width |

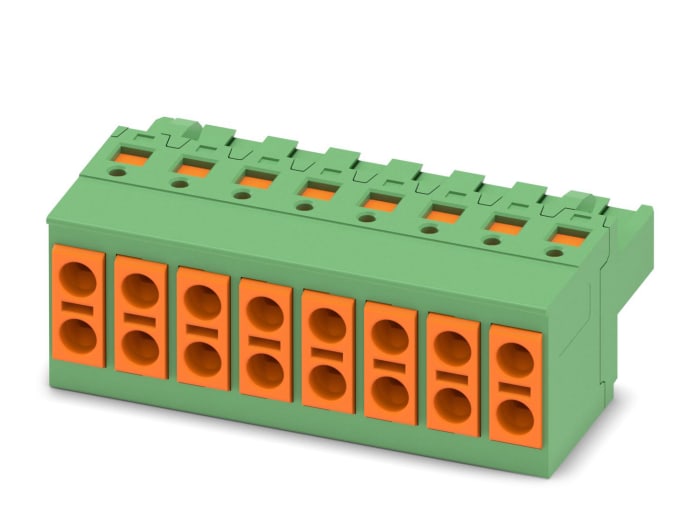

The Phoenix Contact TVFKC-1.5/8-ST is a high-quality pluggable terminal block designed for efficient electrical connections. It features 8 contacts arranged in a single row with a 5mm pitch, making it suitable for various PCB applications.
This terminal block boasts a robust polyamide housing and a green color. The connection method utilizes a push-in spring system, allowing for quick and secure wire termination. It supports a current rating of 10A and a voltage rating of 320V, with a nominal cross-section of 1.5 mm².
Designed for reliability, the TVFKC-1.5/8-ST accommodates wire sizes from 0.2mm² to 1.5mm² (6 to 24 AWG). Its compact dimensions, with a length of 23.3mm and a width of 40mm, facilitate integration into space-constrained designs. The series is part of the CLASSIC COMBICON plug system and is manufactured in Poland.
This component meets various industry standards, including cULus, EU REACH SVHC, EU RoHS, CHINA RoHS, and CSA, ensuring compliance for diverse applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.38 | $0.38 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The TVFKC-1.5/8-ST has 8 contacts.
The pitch of the TVFKC-1.5/8-ST is 5 mm.
The nominal current rating for the TVFKC-1.5/8-ST is 10 A.
The rated voltage for the TVFKC-1.5/8-ST is 320 V.
The TVFKC-1.5/8-ST supports minimum wire sizes of 0.2 mm² (6 AWG) and maximum wire sizes of 1.5 mm² (24 AWG).
The TVFKC-1.5/8-ST uses a push-in spring connection method.
The housing of the TVFKC-1.5/8-ST is made from Polyamide.
