| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
33 pcs
|
33 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Plating | |
| Country of Origin | |
| Failure Rate | |
| Gender | |
| Mounting Type | |
| Number of Contacts | |
| Shell Plating | |
| Shell Size | |
| Termination Method | |
| Voltage Rating |

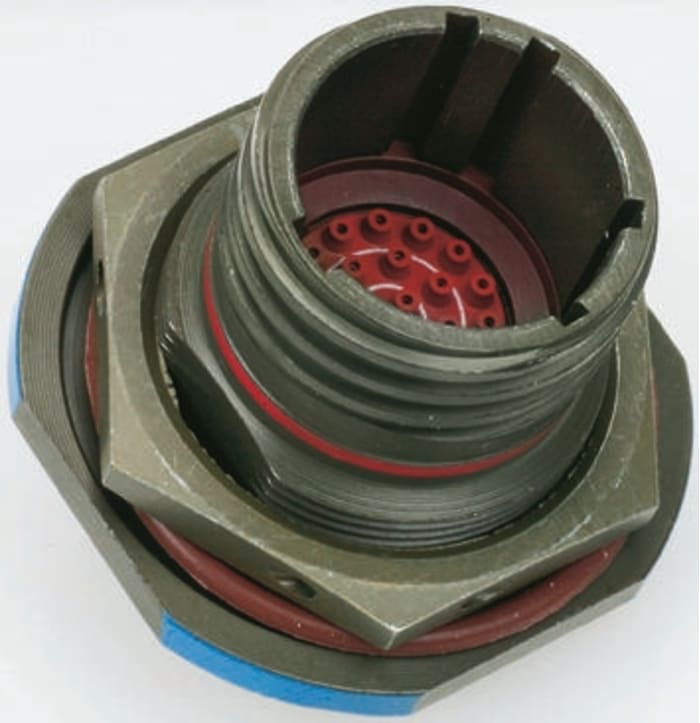

This Amphenol Socapex TV07RW11-98S is a 6-way panel mount circular connector designed for demanding applications. It conforms to the MIL-DTL-38999 military standard and utilizes a screw coupling mating type for secure connections.
The connector has a shell size of 11 and a straight body orientation. It is rated for 600V AC and 850V DC, with a wide operating temperature range from -65°C to +175°C. The contacts are plated with gold for enhanced conductivity, and the shell is plated with Olive Drab Cadmium. Termination is achieved via a crimp method.
Designed for harsh environments, this receptacle features rapid coupling via a triple-start thread and offers improved EMI shielding. It is manufactured in France and belongs to the TV series of jam nut receptacles.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.00 | $3.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The voltage rating is 600 V AC and 850 V DC.
The operating temperature range is from -65°C to +175°C.
It uses a panel mount type.
It meets the MIL-DTL-38999 military standard.
The contact plating is Gold.
