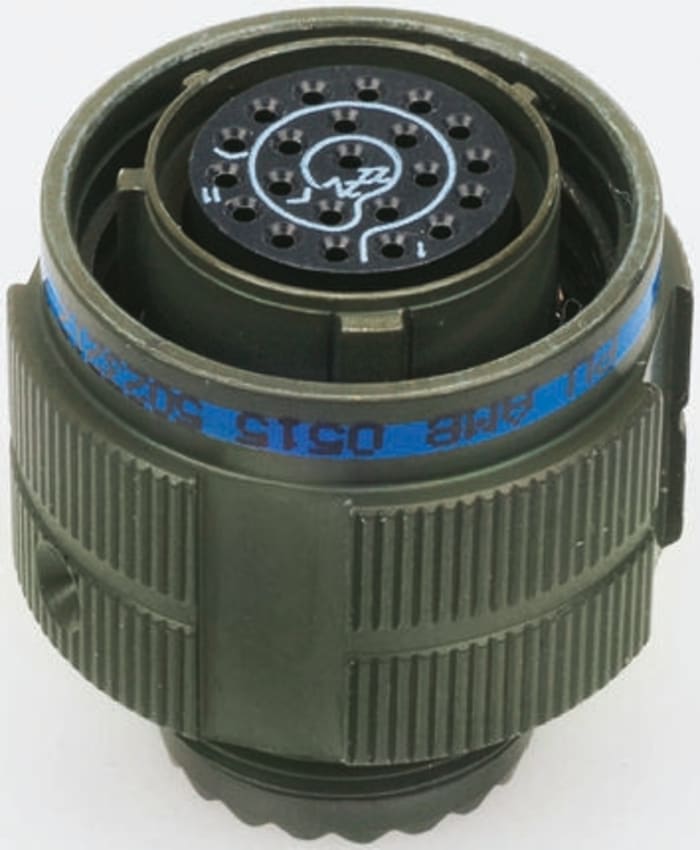

This Amphenol Socapex TV06RW15-35S is a MIL-DTL-38999 Series III compliant circular connector. It features 37 contacts, with male connector gender and female contacts. The connector has a straight orientation and a cable mount type, utilizing a screw coupling for secure mating.
Designed for harsh environments, this connector operates within a temperature range of -65°C to 175°C and has a voltage rating of 550V dc. The shell is plated with Olive Drab Cadmium, and the contacts are gold plated for reliable conductivity. The termination type is crimp.
Amphenol MIL-DTL-38999 III - Tri-Start TV Aluminium shell connectors are known for their robustness and improved EMI shielding. Receptacles are intermountable with MIL-DTL-38999 series I standard, requiring the same panel drilling.
Key specifications include 37 contacts, a shell size of 15, and a voltage rating of 550V dc. The connector is suitable for applications requiring high reliability in extreme conditions.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.00 | $1.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The TV06RW15-35S has 37 contacts.
The voltage rating is 550V dc.
It operates from -65°C to 175°C.
It uses a screw coupling mechanism.
The termination type is crimp.
The shell plating is Olive Drab Cadmium.
The contact plating is gold.
