TUSB9261PVP The Texas Instruments TUSB9261PVP is a specialized USB 3.0 to SATA bridge IC. It offers SuperSpeed USB 3.0 compliance and operates within a 0°C to 70°C temperature range.
Mfr Part #:

TUSB9261PVP

Available from 4 distributors
Mfr Name: Texas Instruments
Texas Instruments
The Texas Instruments TUSB9261PVP is a specialized USB 3.0 to SATA bridge IC. It offers SuperSpeed USB 3.0 compliance and operates within a 0°C to 70°C temperature range.
✓ Total Stock: 17,736 pcs
$ Price Range: $3.21

TUSB9261PVP Available from 4 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
7,232 pcs
On Request
7232 pcs On Request 1 On Request On Request On Request On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
5,000 pcs
On Request
5000 pcs On Request 1 On Request On Request 19+ On Request On Request
Optech Co.,Limited ✓
Non-Authorised Inventory information
3,240 pcs
On Request
3240 pcs On Request 1 On Request On Request 23+ On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
2,264 pcs
On Request
2264 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TUSB9261PVP Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Core Processor
Interface
Lead Spacing
Mounting Type
Operating Temperature Range
Operating Voltage
Package Quantity
Supplier Device Package
Voltage
View Similar Products (0)

TUSB9261PVP Description

Short technical summary and product information.

The TUSB9261PVP from Texas Instruments is an integrated circuit designed to bridge USB 3.0 to SATA interfaces. This specialized IC is built around an ARM Cortex M3 microcontroller, providing the necessary hardware and firmware for implementing a USB Attached SCSI Protocol (UASP)-compliant mass storage device.



It supports SuperSpeed USB 3.0 signaling at 5 Gbps, along with legacy USB speeds. The SATA interface is compliant with Revision 2.6, supporting SATA 1.5-Gbps and 3.0-Gbps devices. Key features include support for UASP, Mass Storage Class Bulk-Only Transport (BOT), and USB Human Interface Device (HID) protocols. The device also supports USB bootability and firmware updates via USB.

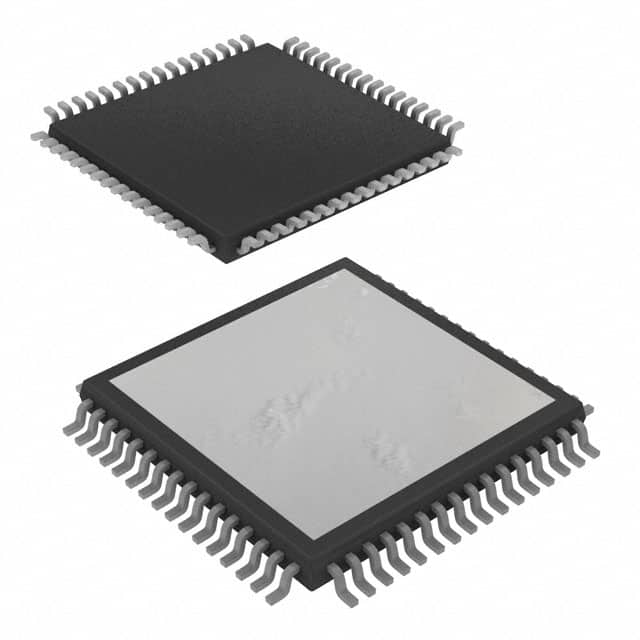

Designed for applications such as bridging hard disk drives (HDD), solid-state drives (SSD), and optical drives, the TUSB9261PVP is housed in a 64-HTQFP package. It operates within an ambient temperature range of 0°C to 70°C and requires operating voltages of 1.1V and 3.3V. The IC includes up to 12 GPIOs for end-user configuration and supports a 40 MHz clock oscillator.

TUSB9261PVP Quick Information

Product Type: USB to SATA Bridge IC
Canonical Name: TUSB9261PVP USB 3.0 to SATA Bridge
Subcategory: Specialized

TUSB9261PVP Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): Level 1 Unlimited
REACH Status: REACH Unaffected

TUSB9261PVP Estimated Pricing

Qty Low High
1+ $3.21 $3.21

Estimated market price range - modelled values for guidance only, not live distributor offers.

TUSB9261PVP Features

  • USB 3.0 to SATA bridge IC
  • SuperSpeed USB 3.0 compliant
  • ARM Cortex M3 microcontroller core
  • 64-HTQFP surface mount package
  • 0°C to 70°C operating temperature

TUSB9261PVP Applications

  • Bridging hard disk drives
  • Connecting solid-state drives
  • Interface for optical drives
  • Mass storage device implementation

TUSB9261PVP FAQs

4 frequently asked questions generated from this part’s specifications.
What is the operating temperature range for the TUSB9261PVP?

The operating temperature range is 0°C to 70°C.

What package type is the TUSB9261PVP available in?

The TUSB9261PVP is available in a 64-HTQFP (7x7) package.

What are the RoHS and REACH statuses for the TUSB9261PVP?

The TUSB9261PVP is RoHS3 Compliant and REACH Unaffected.

What is the Moisture Sensitivity Level (MSL) for the TUSB9261PVP?

The Moisture Sensitivity Level (MSL) is Level 1 Unlimited.
