| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,451 pcs
|
3451 pcs | On Request | 1 | On Request | On Request | 21+ | On Request | On Request | |
|
3,121 pcs
|
3121 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2,611 pcs
|
2611 pcs | On Request | 1 | On Request | On Request | 21+ | On Request | On Request | |
|
46 pcs
|
46 pcs | On Request | 1 | On Request | On Request | 24+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Features | |
| Function | |
| Interface | |
| Operating Temperature | |
| Protocol | |
| Standards | |
| Supplier Device Package | |
| Tape & Reel | |
| Voltage |
The TUSB8041RGCR from Texas Instruments is a versatile 4-port USB 3.0 hub controller designed for high-speed data transfer. This device supports SuperSpeed USB 3.0 standards, offering enhanced performance for connected peripherals.
Key electrical and functional specifications include an operating temperature range of 0°C to 70°C and support for multiple voltage levels (1.1V, 3.3V). The controller features a Multi Transaction Translator (MTT) hub with four transaction translators and four asynchronous endpoint buffers per translator. It is capable of supporting Battery Charging CDP and DCP modes, complying with Chinese Telecommunications Industry Standard YD/T 1591-2009 D+/D- Divider Mode.

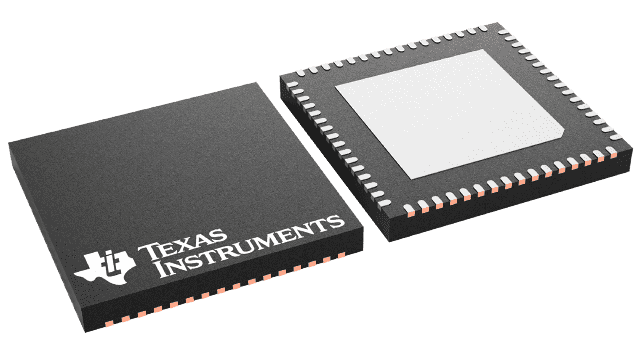

The TUSB8041RGCR is housed in a 64-VQFN exposed pad package, suitable for surface mounting. It offers flexible configuration options via OTP ROM, Serial EEPROM, or I2C/SMBus slave interfaces for custom VID, PID, manufacturer, and product strings. The device also provides a 128-Bit Universally Unique Identifier (UUID) and supports on-board and in-system OTP/EEPROM programming through the USB 2.0 upstream port. A single 24-MHz crystal or oscillator is required for clock input.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.09 | $4.09 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is 0°C to 70°C.
The TUSB8041RGCR is available in a 64-VQFN Exposed Pad package.
The TUSB8041RGCR supports USB 3.0 standards.
The supported interfaces are USB, GPIO, I²C, and SMBus.
The device supports 1.1V and 3.3V.
It supports Battery Charging CDP Mode (Upstream Port Connected) and DCP Mode (Upstream Port Unconnected).
