TUSB8040PFP The Texas Instruments TUSB8040PFP is a SuperSpeed USB 3.0 4-port hub controller. It supports USB 3.0 compliance and offers a data rate of 5 Gbps.
Mfr Part #:

TUSB8040PFP

Available from 2 distributors
Mfr Name: Texas Instruments
Texas Instruments
The Texas Instruments TUSB8040PFP is a SuperSpeed USB 3.0 4-port hub controller. It supports USB 3.0 compliance and offers a data rate of 5 Gbps.
✓ Total Stock: 8,715 pcs
$ Price Range: $7.55

TUSB8040PFP Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
6,027 pcs
On Request
6027 pcs On Request 1 On Request On Request On Request On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
2,688 pcs
On Request
2688 pcs On Request 1 On Request On Request 19+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TUSB8040PFP Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Function
Interface
Lead Spacing
Operating Temperature
Protocol
Standards
Supplier Device Package
Voltage
View Similar Products (0)

TUSB8040PFP Description

Short technical summary and product information.

The Texas Instruments TUSB8040PFP is a USB 3.0 compliant four-port hub controller designed for high-speed data transfer. It supports SuperSpeed, High-Speed, and Full-Speed connections on its upstream port and SuperSpeed, High-Speed, Full-Speed/Low-Speed connections on each of its four downstream ports. This device operates at USB speeds of up to 5 Gbps.



Key features include support for Battery Charging 1.2 compliant applications and per-port or ganged power switching with over-current protection. The TUSB8040PFP can operate as a USB 3.0 or USB 2.0 compound device. It offers configurable options via an optional Serial EEPROM or SMBus slave interface for custom configurations like VID/PID, manufacturer strings, and serial numbers.

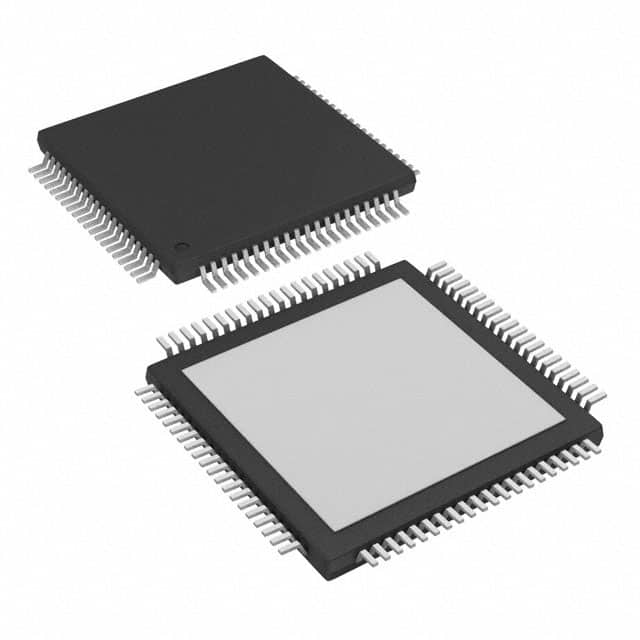

Available in an 80-HTQFP (12x12) package, the TUSB8040PFP has an operating temperature range of 0°C to 70°C. Note that this product is not recommended for new designs, and users should consider alternate products for new projects. It remains available for existing customers.



This hub controller provides essential status outputs for upstream connections and port suspension. It also optionally supports USB 2.0 compliant port indicator LEDs and configurable SMBus addresses.

TUSB8040PFP Quick Information

Product Type: USB Hub Controller
Canonical Name: TUSB8040 SuperSpeed USB 3.0 4-Port Hub Controller
Subcategory: Interface Controllers

TUSB8040PFP Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TUSB8040PFP Estimated Pricing

Qty Low High
1+ $7.55 $7.55

Estimated market price range - modelled values for guidance only, not live distributor offers.

TUSB8040PFP Features

  • SuperSpeed USB 3.0 4-port hub controller.
  • Supports 5 Gbps USB data transfer speed.
  • Operates at 1.1V and 3.3V supply voltages.
  • Available in 80-HTQFP package.
  • Not recommended for new designs.

TUSB8040PFP Applications

  • Suitable for USB 3.0 hub designs.
  • Used in high-speed data transfer applications.
  • Ideal for peripheral device connectivity.
  • Supports battery charging in USB systems.
  • Applicable in industrial and consumer electronics.

TUSB8040PFP FAQs

5 frequently asked questions generated from this part’s specifications.
What is the USB speed supported by the TUSB8040PFP?

The TUSB8040PFP supports USB 3.0 with a speed of 5 Gbps.

What are the operating voltage requirements for the TUSB8040PFP?

The TUSB8040PFP operates at 1.1V and 3.3V.

What is the operating temperature range of the TUSB8040PFP?

The operating temperature range for the TUSB8040PFP is 0°C to 70°C.

What package type is the TUSB8040PFP available in?

The TUSB8040PFP is available in an 80-HTQFP (12x12) package and an 80-TQFP Exposed Pad package.

Is the TUSB8040PFP recommended for new designs?

No, the TUSB8040PFP is not recommended for new designs.
