| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Data Rate | |
| Function | |
| Primary Attributes | |
| Supplied Contents | |
| Type | |
| Utilized IC |

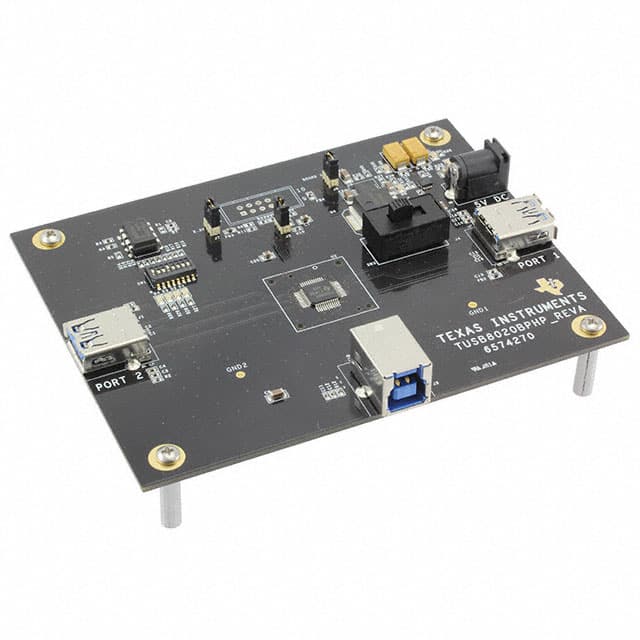

The TUSB8020BEVM is an evaluation board from Texas Instruments designed around the TUSB8020B two-port USB 3.0 hub controller. The board provides a complete hardware reference design and allows evaluation of system compatibility, development of optional EEPROM firmware, and validation of interoperability.
The evaluation module supports both SuperSpeed USB 3.0 at 5.0 Gbps and USB 2.0 (HS, FS, LS) operation on its USB ports. On-board jumpers and LEDs facilitate testing and configuration. The board includes USB port connectors with power and noise filtering circuitry, as well as an optional serial EEPROM interface.
This EVM is intended for use in evaluating and prototyping USB hub designs in automotive or general-purpose applications. It ships as a bare board assembly and requires connection to a USB-enabled host for operation.
| Qty | Low | High |
|---|---|---|
| 1+ | $261.19 | $261.19 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The TUSB8020BEVM supports SuperSpeed USB 3.0 data rates up to 5.0 Gbps.
The TUSB8020BEVM is a two-port USB 3.0 hub evaluation board.
The board utilizes the Texas Instruments TUSB8020B USB 3.0 hub controller.
The supplied contents are the evaluation board(s) only.
